Lunacy Posted July 2, 2012 Share Posted July 2, 2012 Anybody keen to draw up the brake caliper bracket ive had made, so i can get some more cut? Willing to pay beers/bourbon/monies if someone could do one up that i could give straight to a cnc place. Ive downloaded the Draftsight program but gonna take me awhile to figure most of that out i think. Quote Link to comment Share on other sites More sharing options...
Spencer Posted July 2, 2012 Author Share Posted July 2, 2012 Chuck up dimensions and a drawing/scan and someone will help. I will If I get some time, still havnt got around to uploading all the drawings I have Quote Link to comment Share on other sites More sharing options...
Lunacy Posted July 2, 2012 Share Posted July 2, 2012 Chuck up dimensions and a drawing/scan and someone will help. I will If I get some time, still havnt got around to uploading all the drawings I have Cheers wil do when i grab the bracket outta the shed tomorrow Quote Link to comment Share on other sites More sharing options...
ThePog Posted July 2, 2012 Share Posted July 2, 2012 Scan is good with a couple of dimensions to get the right scale, won't take long. Quote Link to comment Share on other sites More sharing options...

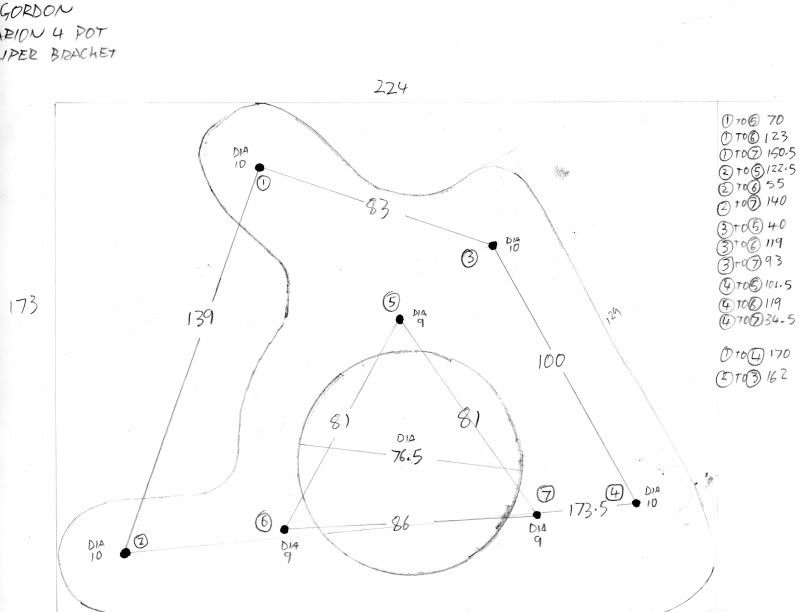

Lunacy Posted July 4, 2012 Share Posted July 4, 2012 Ok this is what i managed to do this arvo. If anyone can help do a cad file for this thatd be sweet. And if it needs more measurements i can do that too Black dots are holes, with diameters next to them. Ive labelled them 1-7 and the distances between these holes are down the right hand side of the pic. Quote Link to comment Share on other sites More sharing options...
Spencer Posted July 4, 2012 Author Share Posted July 4, 2012 Im cadding some shit for work so I'll have a blat now Quote Link to comment Share on other sites More sharing options...
Lunacy Posted July 4, 2012 Share Posted July 4, 2012 Im cadding some shit for work so I'll have a blat now Legend cheers man Let me know if you need anymore measurements. Quote Link to comment Share on other sites More sharing options...

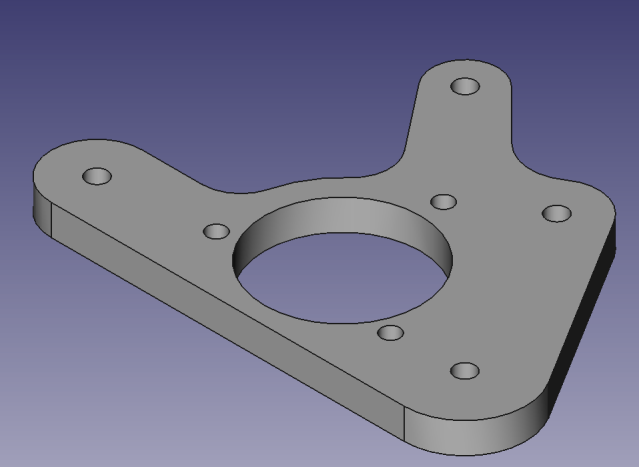

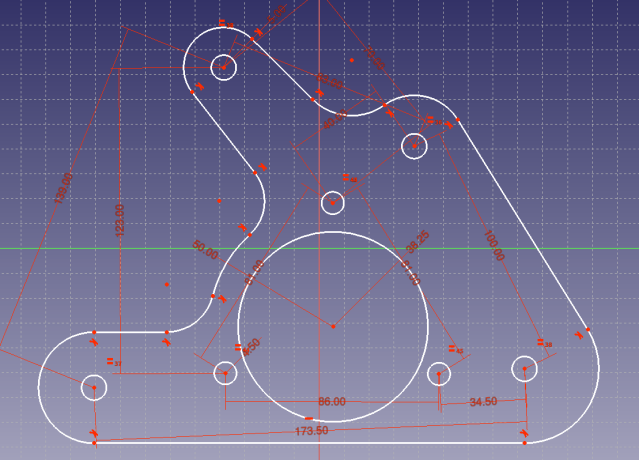

mikey Posted July 5, 2012 Share Posted July 5, 2012 Thought I'd have a quick bash at it this morning. I've filled in some of the measurements, they don't all add up, which is not really surprising. Some checks against the drawing would be a good idea. Also the large hole is only positioned by eye. As far as I could tell there were no measurements to help with locating it? Even a measurement from the center of each orbiting hole to the edge of the big one would help. Same for the meat around the perimiter, some measurements from the holes to the outer edge would help.thing.dxf * edit * updated drawings Quote Link to comment Share on other sites More sharing options...
mikey Posted July 6, 2012 Share Posted July 6, 2012 Actually, a scan with one or two dimensions is probably the easiest way to do this. Saves all the measurements, and maddening requests! ha ha Quote Link to comment Share on other sites More sharing options...
Lunacy Posted July 6, 2012 Share Posted July 6, 2012 Actually, a scan with one or two dimensions is probably the easiest way to do this. Saves all the measurements, and maddening requests! ha ha Would it be easier if i dropped off the bracket to you so you could measure what you needed? Is off the car at the mo so no problem to do it. Can also drop off beer etc at same time Quote Link to comment Share on other sites More sharing options...
Indiana_Jones Posted July 23, 2012 Share Posted July 23, 2012 This thread is a pretty good idea _b Quote Link to comment Share on other sites More sharing options...
Spencer Posted July 23, 2012 Author Share Posted July 23, 2012 Still need to upload all my stz and clean up this thread may have to pass it on to someone, to much going on with the work/car Quote Link to comment Share on other sites More sharing options...
Jase Posted August 3, 2012 Share Posted August 3, 2012 got ls1 exhaust flanges Diddy? scratch that google provides just need to see if draftsite will upload a dxf file Quote Link to comment Share on other sites More sharing options...
Mitch.W Posted August 16, 2012 Share Posted August 16, 2012 anyone have any drawing to a 1ggte exhaust flange? or could draw one up? would be heaps of help Quote Link to comment Share on other sites More sharing options...
Seedy Al Posted August 21, 2012 Share Posted August 21, 2012 anyone got a cad file to suit 3 sets of 20v throttle bodys inline to suit a 2jz or similar?? 1 Quote Link to comment Share on other sites More sharing options...
Simon Posted August 21, 2012 Share Posted August 21, 2012 Spence, how big is your cad drawing folder? Just thinking it would probably be easier to zip them all up and host them in one file. Then index them here and people can grab the lot and find what they want. I can host it on a private server that is up 24/7 for if you want. Quote Link to comment Share on other sites More sharing options...
Rookie Posted August 30, 2012 Share Posted August 30, 2012 Does anyone have a anything to r154 bellhousing adaptor drawing? Quote Link to comment Share on other sites More sharing options...
EURON8 Posted September 1, 2012 Share Posted September 1, 2012 anyone got a cad file to suit 3 sets of 20v throttle bodys inline to suit a 2jz or similar?? Mikey is drawing me up one. Have got a printout today to confirm sizing against factory 4age manifold Can get 2cut if you like. Quote Link to comment Share on other sites More sharing options...
Seedy Al Posted September 5, 2012 Share Posted September 5, 2012 yes if you think its the go then lock me on. Does it look like the one on the build on the supra with the tripples? Quote Link to comment Share on other sites More sharing options...
EURON8 Posted September 5, 2012 Share Posted September 5, 2012 On Jzxnz? Ya came out looking just like that only not hand cut looking haha. Mikey hadnt seen it before drawing. I will show you the final drawing once its locked in. Just getting him to Resize some holes and increase border thickness. Stay tuned. Quote Link to comment Share on other sites More sharing options...
