Tonight's job was making the engine mount, engineers, please bare with me cos this may be painful to look at, but my engineering skills ain't that flash..

First was put the engine where I wanted it to sit and measure the distance between centres from the original engine mount location to the new mount location.  (which was 30mm BTW)

Next cut some 50mm x 6mm strap to 50mm lengths giving me 50x50x6 plates.
Drill 2 pilot holes 30mm apart along the centre line of the plate and drill them to 11mm (10mm bolt plus wiggle)
Cut down the sides to a nice taper then repeat x 2

Next measure the gap from the engine to the plates with them bolted in, each side was different (8mm one side and 10mm the other)
Also cut a spacer to go where the engine used to sit (90mm wide but I fucked up so have to add a wee washer on one side to pack it out)

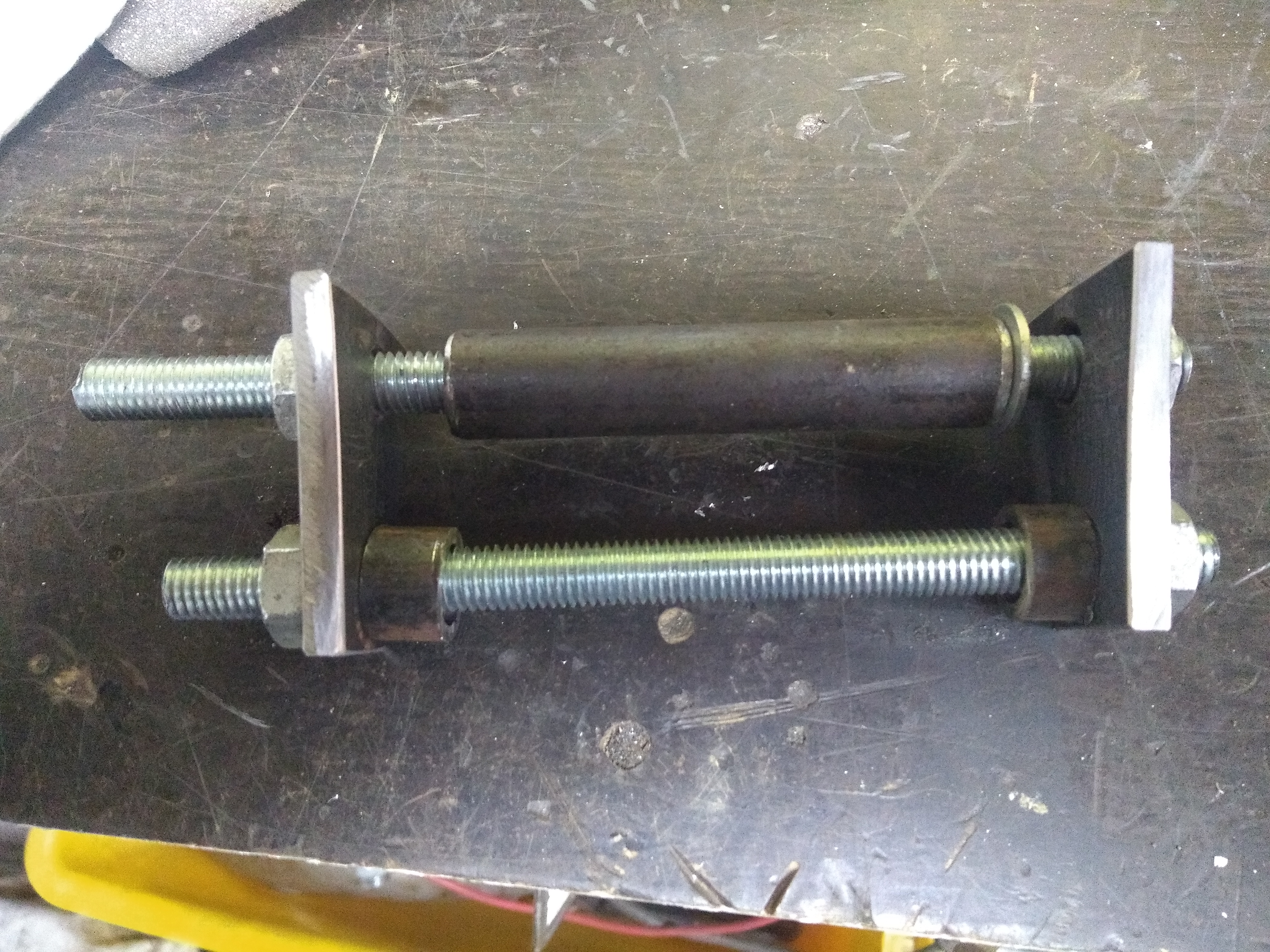

Fit the plates with spacers and tighten it all up, VOILA! a mount is born.





And here are all the parts back out of the bike. I intend to radius the corners of the plates and weld the small spacers to the plates and then weld the plates to the frame. But I ran out of time tonight.



It was incredibly strong as it was by just tightening up the bolts, but for longevity I reckon its probably best to weld the plates in place. I may linish down the smaller spacers yet, because it might be a mission to get the engine in and out with the snugness it possesses currently.

Anyhow if you have any criticism then fire away. Although this seems a much easier method than the way other people have described to me how they did it.

Also I won't be using threaded rod in the final version - I just used it for mock up purposes this time around.

[Chris.QCR 8,931]

Quite possibly the most professional mounting of a 125 into a c90 yet. And also looking at the photos your engineering skills are tops.

Good work matey

[KKtrips 22,270]

New inspirational photos of a Deluxe cub WITH a full rear fender... mmmmm mmm yummy

[Chris.QCR 8,931]

Glad after plenty of searching I found that for ya mate. Turns out full fender deluxe custom cubs are rare. This is a super cool bike and great Inspiration

[KKtrips 22,270]

OK so a bevvy of parts arrived from the states in the last couple of days.

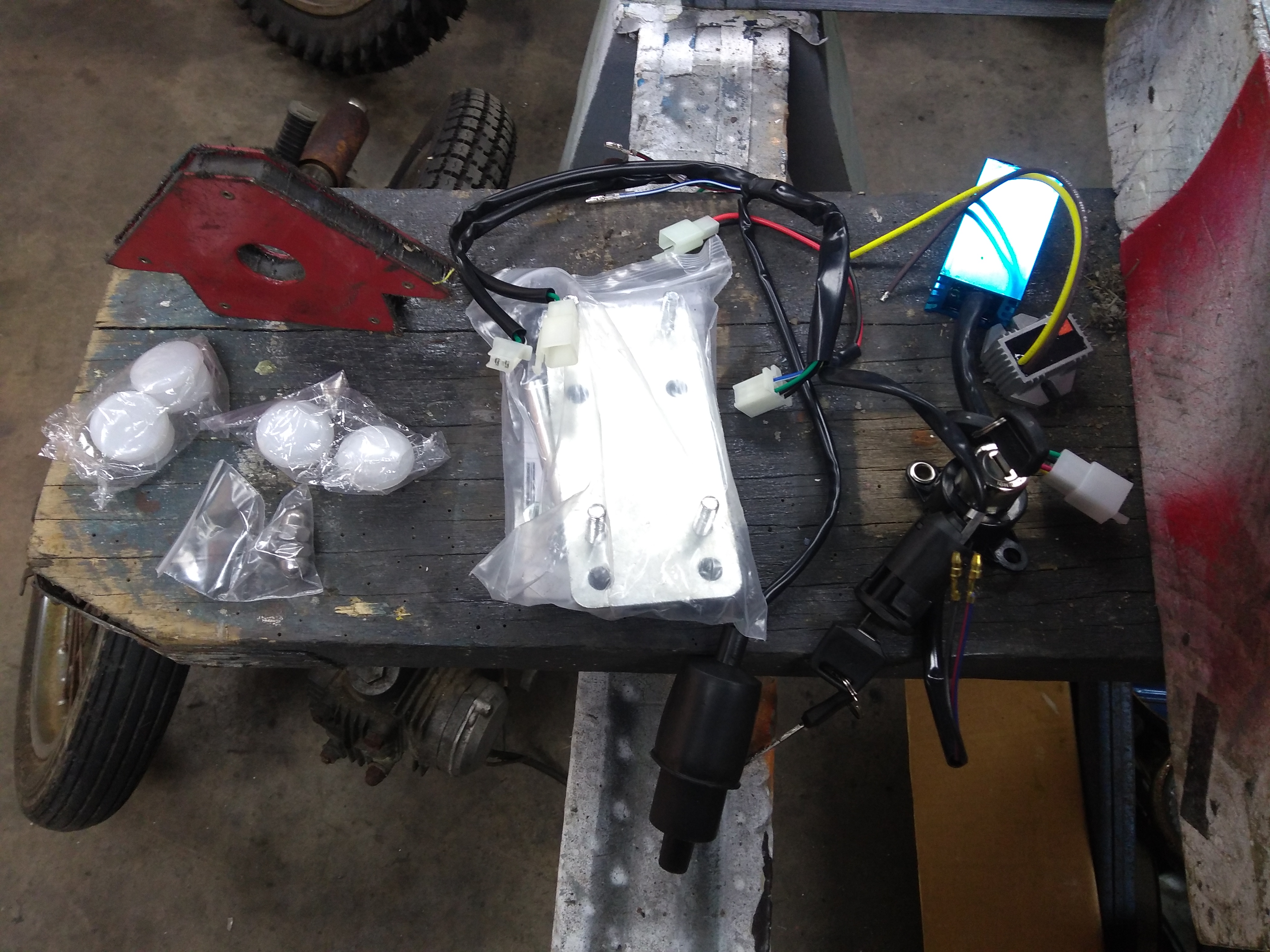

Heaps of electrical bits and a rear guard plus an aftermarket conversion kit for engine mount (so no longer need my home made one)

Also my parts bike arrives from Dunedin on Sunday night, plan is to rip into full mock up on Monday and Tuesday.

Maybe even try and kick it into life next week before full strip down and paint.



[KKtrips 22,270]

Fucked my back at the end of August, taken a few weeks to get my back sorted enough to bend over to do the twist and shout.

I spent a couple of hours mocking up some more tonight. Tomorrow handlebars and weld on the rear guard...





Not sure if I want to rock the leg shield or not, easy enough to make the call once it's nearly finished though.

[Big Value Buddy 2,767]

Good to see your sign made the photo =)

[Hemi 9,451]

Man that one in the background is a bit shgwag spec.

Cool bike!

[KKtrips 22,270]

Little bit more progress plus I sorted out all my parts tonight of what I definitely won't use and what I "might" use. The box of "might" use is quite small now so need to decide whether I'm going to paint it or keep it ratty for summer.

Probably ratty for summer. Make sure everything works and pull it apart in winter for a tidy rebuild.



[KKtrips 22,270]

Oh yeah, forgot to say.  Guard is mostly welded on and I ground most of the backbone off smooth. Needs a bit more welding and trimming but on its way to good.

[Dolan 15,599]

Love your work matey

[KKtrips 22,270]

Been doin a little bit here and there at Joe/Goat/Flanges on Tuesday night Bike night
Still a tonne to do but as long as I knock off a couple things each week I'm happy with progress.

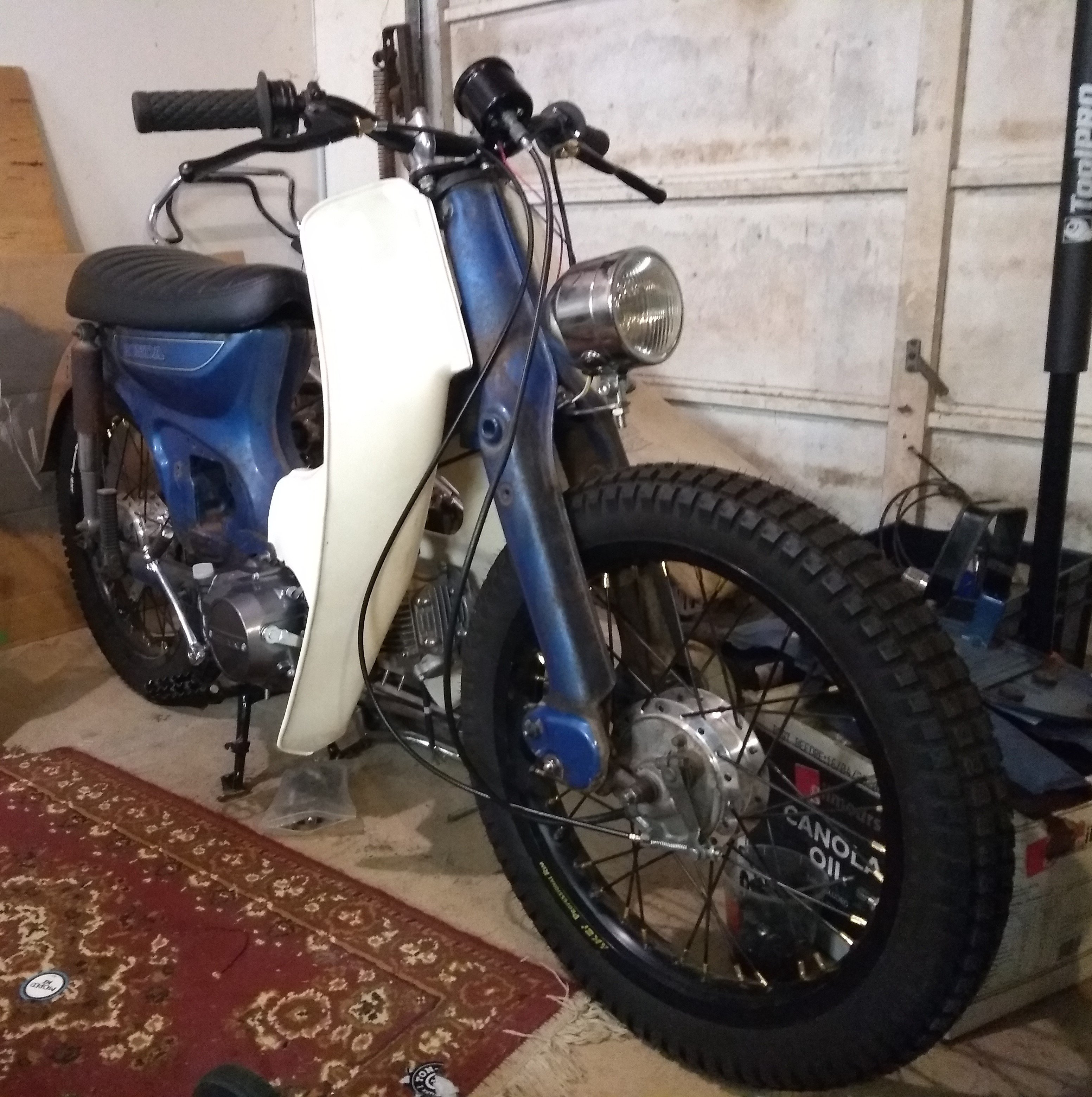

Last couple of weeks I got the front wheel on, motor in, speedo, clutch and brake cables hooked up, foot brake and seat mounted plus slipped  leg shield on (hole was in the PERFECT place tonight for the carb to poke out - didn't even need to cut it) and then remounted the speedo.
