Thought I should make me one of these thread things for my bug.


got it when I was about 21 and was my only car for over 10 years, good old bitch.


over the years it's had new shocks, brakes, gearbox( later 1500 one) tart up panel and paint and a warmed up 1600 engine.


engle 110 cam, lightened flywheel, hd clutch & oil pump, heavy valve springs, 36mm DRLA Dell etc...


was still running good, save a dodgee starter, but the rust was starting to get noticeable and was a bit bent here and there.


gutters


under rear seat


under rear window


bad repairs


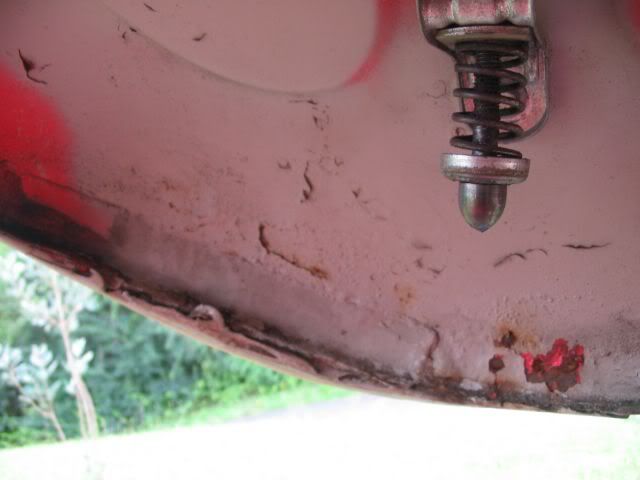

shitty bonnet

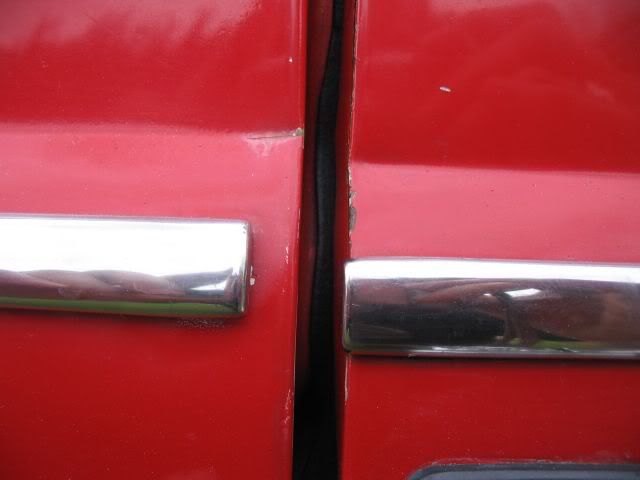

drivers door lines up well!

So that's were it started, hopefully it will end well, i've never done any bodywork or welding etc

1 person likes this

Share this post


Link to post
Share on other sites

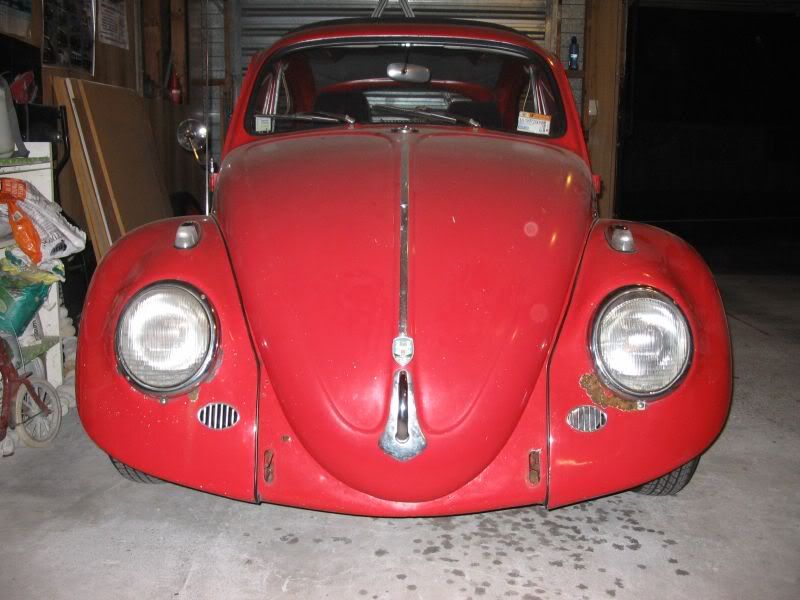

one more pic of how it use to look, 20 footer, good from far, far from good.


so the plan was to start at the front and finish it as much as possible, and not blow the whole car apart, get overwhelmed and give up(ant' happing)


car has four differant fenders of four differant years and models bugs

3 people like this

Share this post


Link to post
Share on other sites

these cars are so easy to take apart, getting it back together, well.

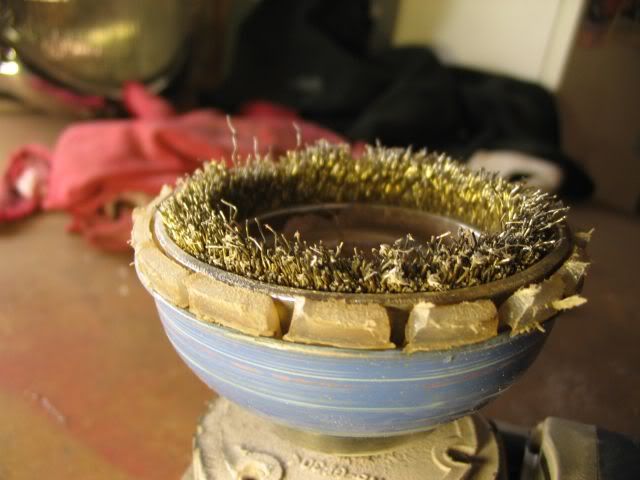

had to buy a grinder plus wire wheel.


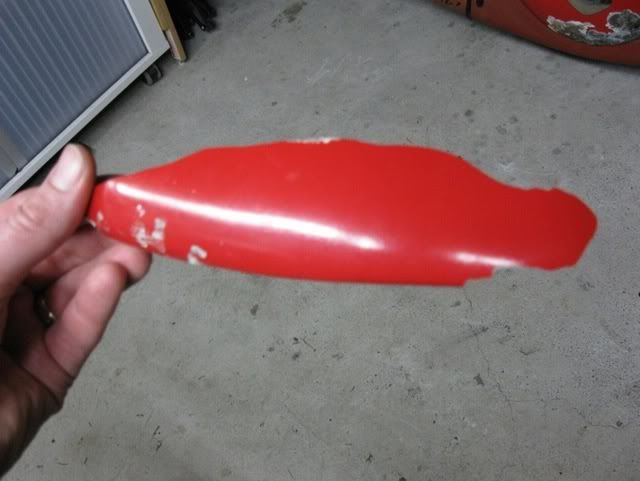

this side had quite a bit of damage which was poorly repaired, then covered in bog.


driver side not so bad.


hello rust, i can see you.


so i got this pair of front fenders off a 50's era car, even though the headlights are the same and fit the body, vw changed the pressing though the years, these have been blasted and i hope to repair them.


I've now go three pairs of front fenders for the car, should be able to fix these with parts of the other two sets.




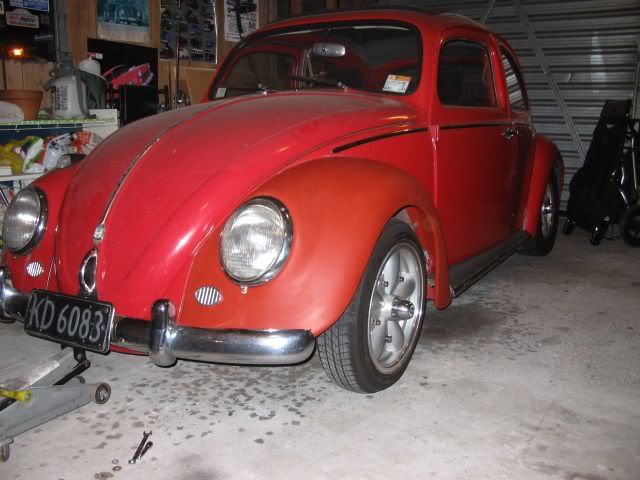

wheel sits perfectly in the wheelarch


got me some spotweld drills

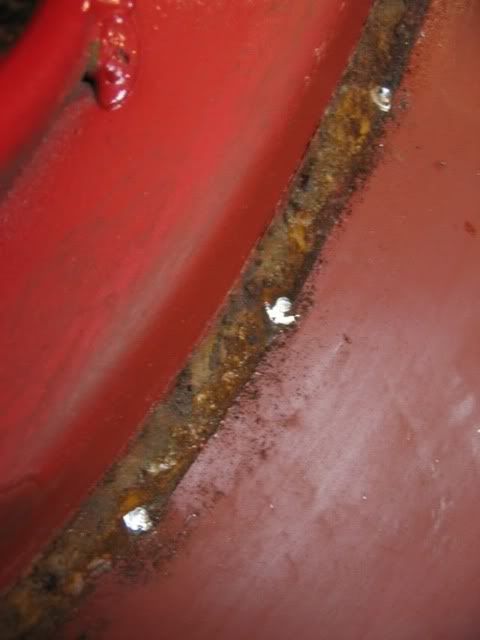

started by removing the seal strip holder thing


crusty


removed the mighty rust trap that is the horn mount.


then got the valance off.


pretty fucked

1 person likes this

Share this post


Link to post
Share on other sites

Forgot to say, all this started at the end of 2009, damn that's ages ago.


here you can see how bent the front was, it took much beating to get this fitting better.


pulled the spare wheel tray next, was krusty in the corners.


and the washer bottle tray


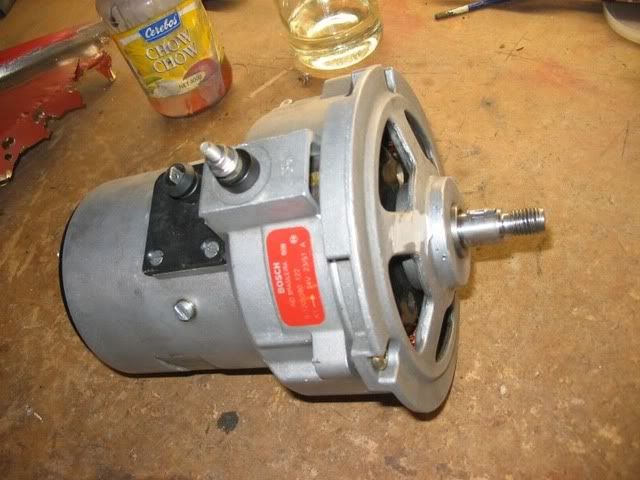

also got a few goodies of some other vw nuts

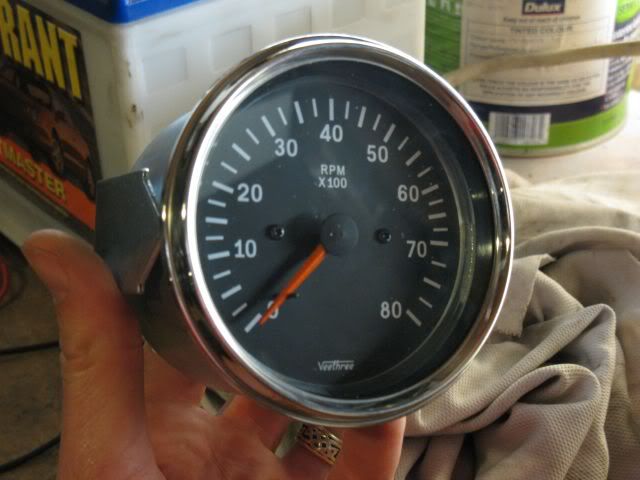

tacho

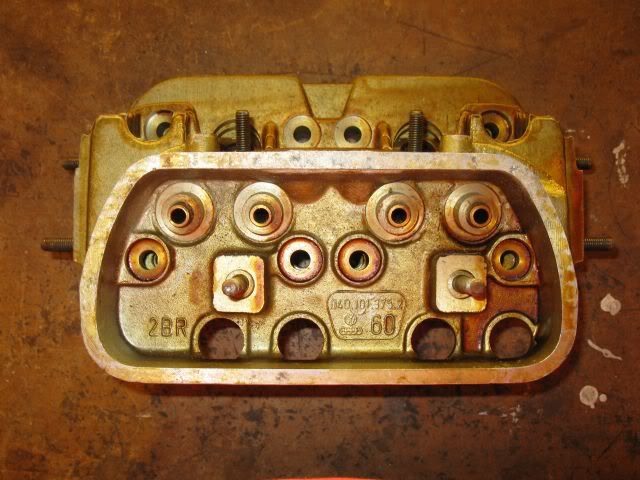

NOS stock heads

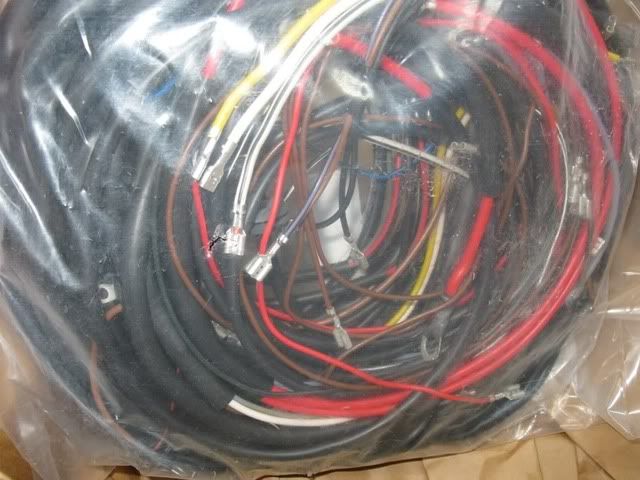

compete new loom

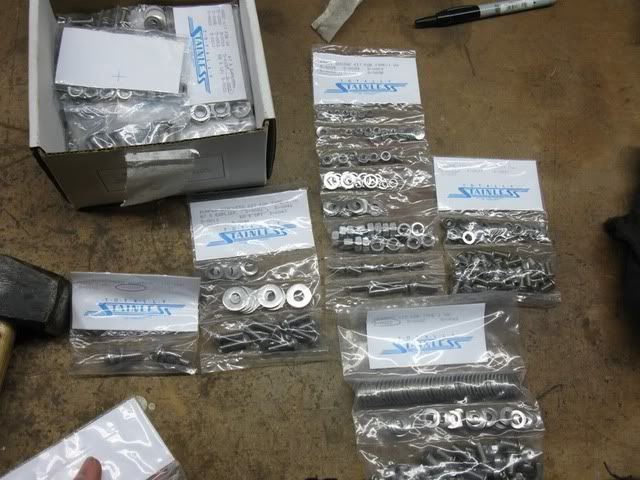

compete stainless nut and bolt set

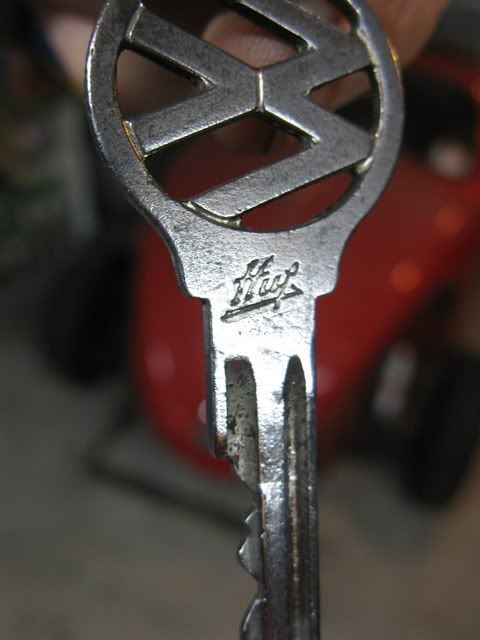

found the og key

Share this post


Link to post
Share on other sites

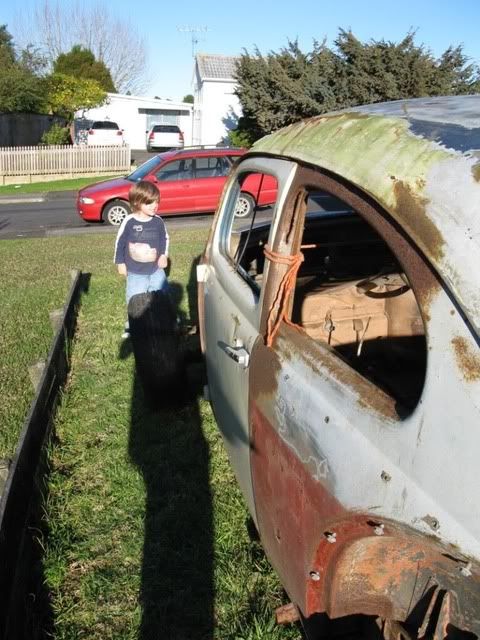

bought this POS for $80 on TM




had about 3 inches of swamp in the pan


but solid where I wanted it


young felix thought I'd bought him a car!


a few weekends later it looked like this


then this



then this



got what I wanted and sold the rest to the scrapyard and some dude took the pan away for a couple bucks, made most of my 80 back

Share this post


Link to post
Share on other sites

got this off a good mate who is an engineer, don't use it no mo.


let the birdshit commence!


templates


making replacement patches

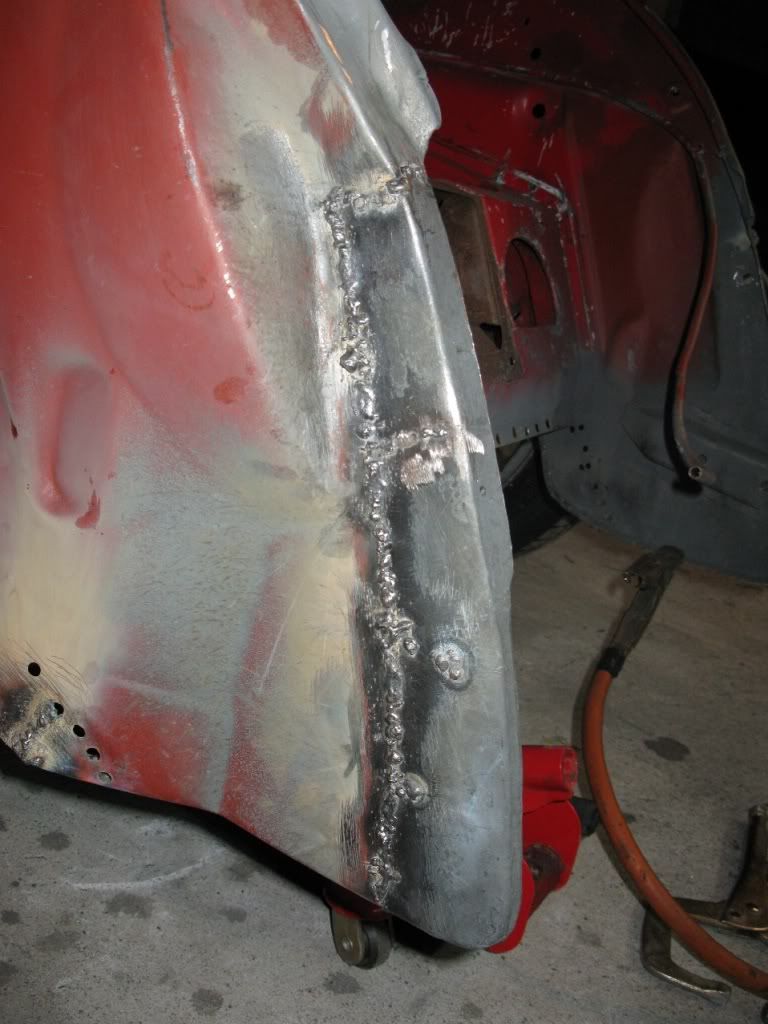

first welds


smoothed out


then started on the spare wheel panel



holes


and blended into the factory steel



and all done, took about 2 months of sundays


sandblasted and primed with weldable primer

Share this post


Link to post
Share on other sites

In order to get the front panels lining up and looking good, I got a new/old bonnet, mine had never fitted and was rusty plus full of bog.

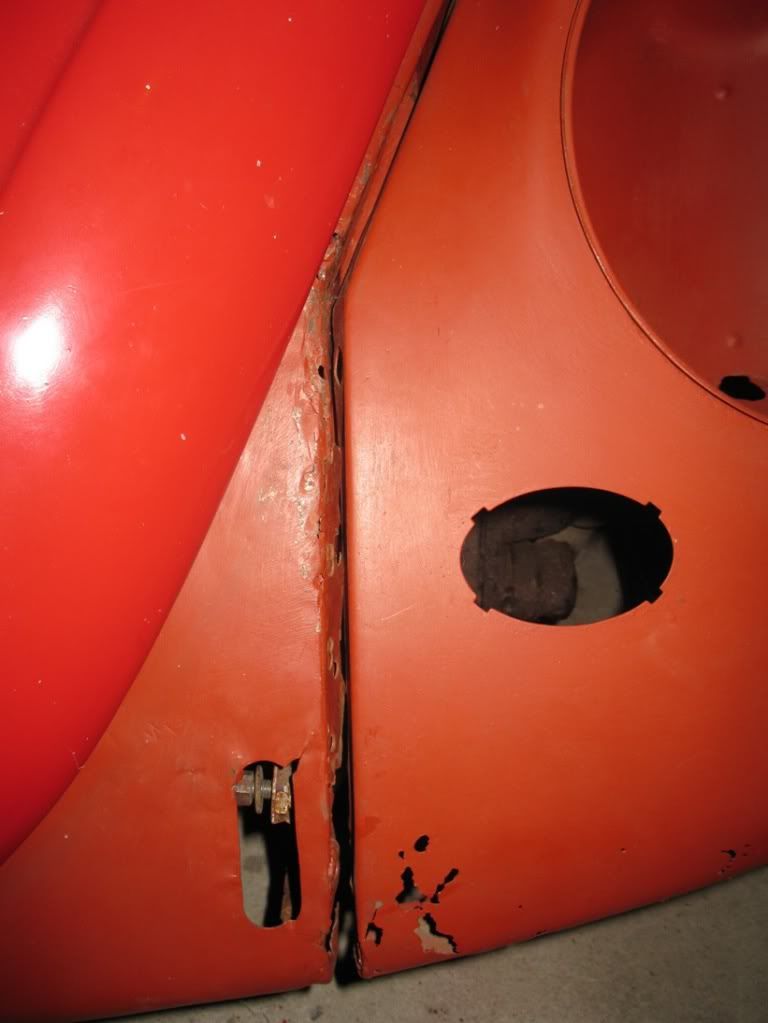

attempting to get rid of this gap


new bonnet, ratty but solid.


next I started, letting in the repair patches I fabbed up, you can buy repop's for these panels, but thats no fun is it!


test fitting


welded up


back


and ground down, pretty happy with it.




Share this post


Link to post
Share on other sites

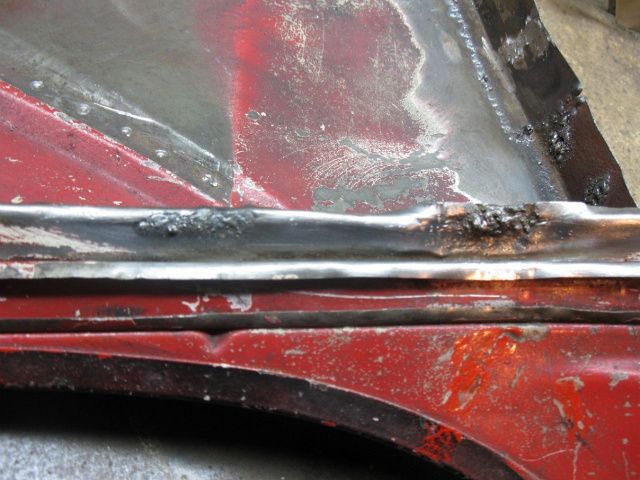

Didn't take any pics of fixing the other side of the valance, wasn't as bad as the first side, joined it though the bumper hole, less welding!

moved on to the body side of things


chop chop.

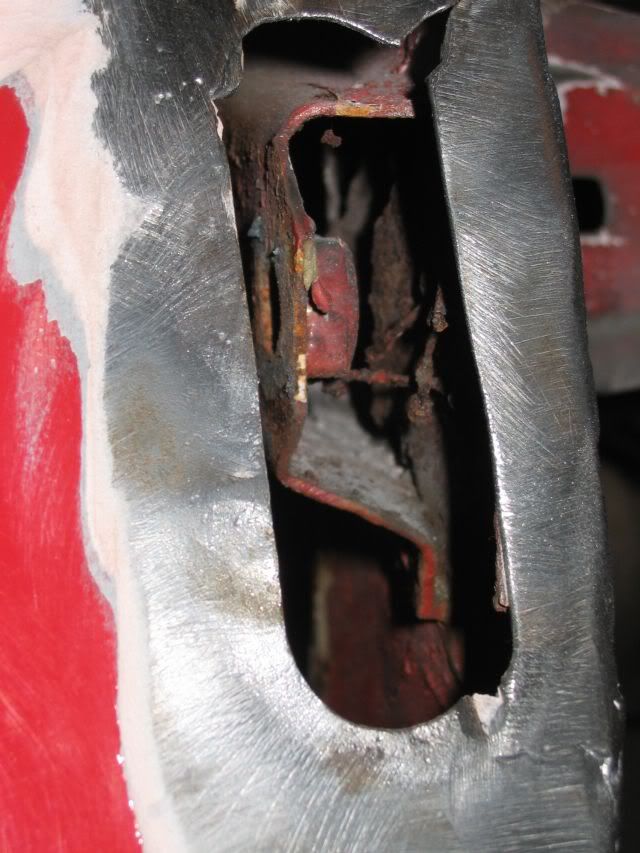

cut out the bad metal, then blasted as much of the surface rust out as i could.


fitting up the patch.


covered everything with weldable primer


drilled holes for plug welds on the bumper mounts


and after some of the worst welding in the world


just like a new one!


cracked into the other side


years of surface rust


welded



primed


just had to weld the fender nuts back in place


got the old supercheap sandblaster out


better


look good just sitting there, will weld everything back together when the body is off the chassis and i can get at the back of the front panels under the gas tank area, sandblast etc...


another mock up to make sure everything still fits


Share this post


Link to post
Share on other sites

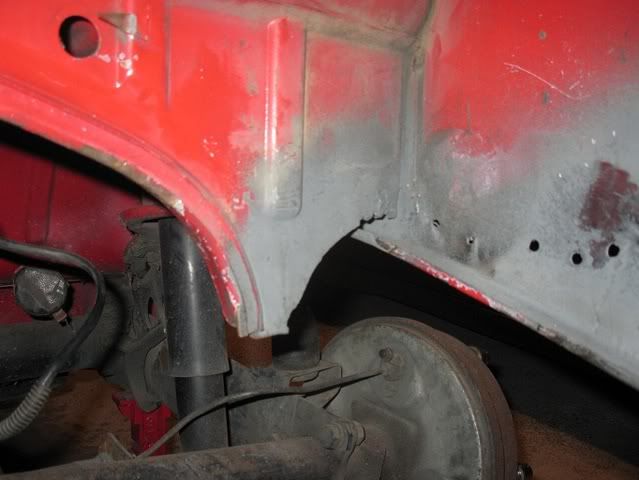

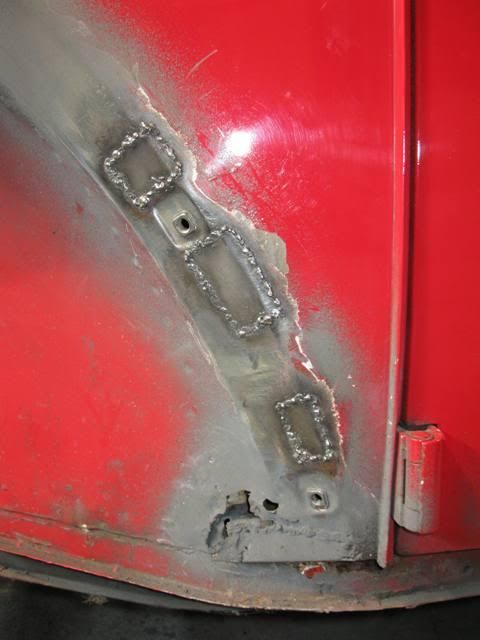

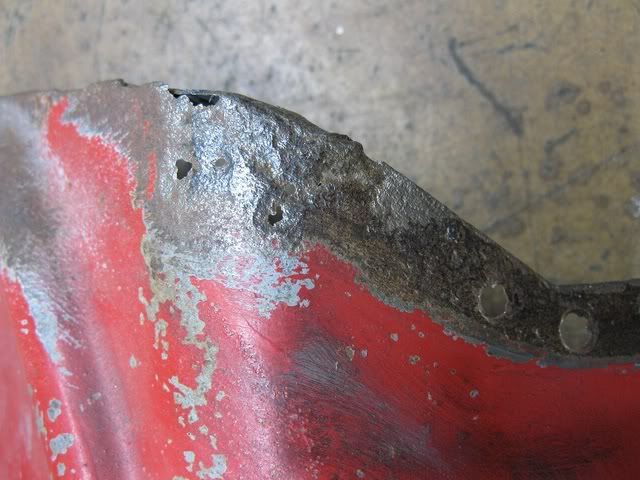

moved on to the wheel arch areas


carefull cutting

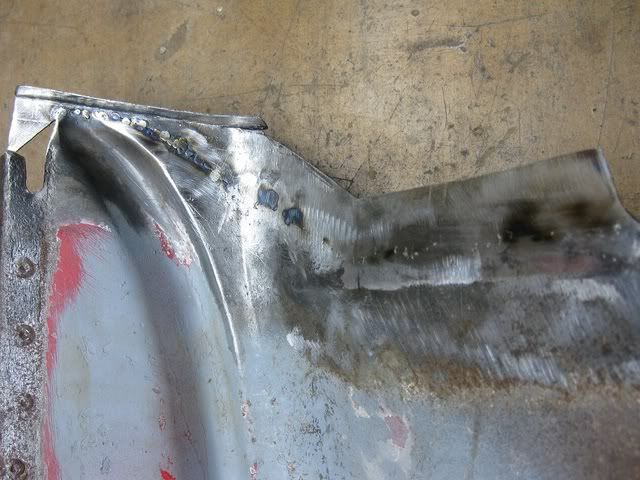

weld


primed

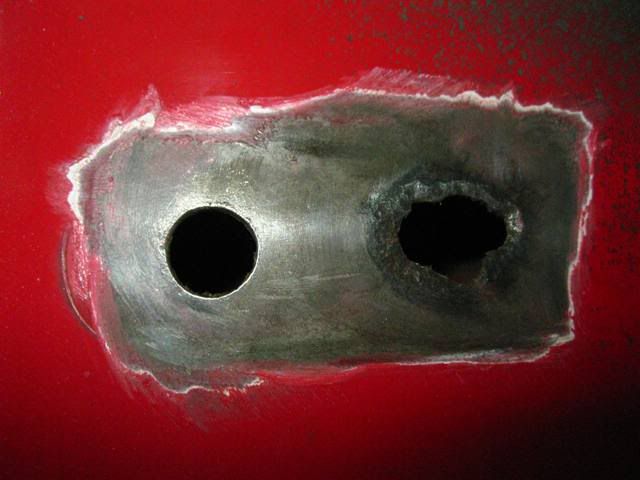

welded up the ariel holes, the bottom one should only about 5mm, but had rusted out.


finished


Share this post


Link to post
Share on other sites

To carry on the "bite sized" work that I can handle, I spun the car 180 and started on the rear.


unbolted the bumper, fenders, engine lid, then dropped the mighty 1600 out.


my work space


then built this little table it store the engine out of the way


cost me a box of woodys from the engineers shop across from work, GC there even cut it to length for me.

then bust out the spot weld drill

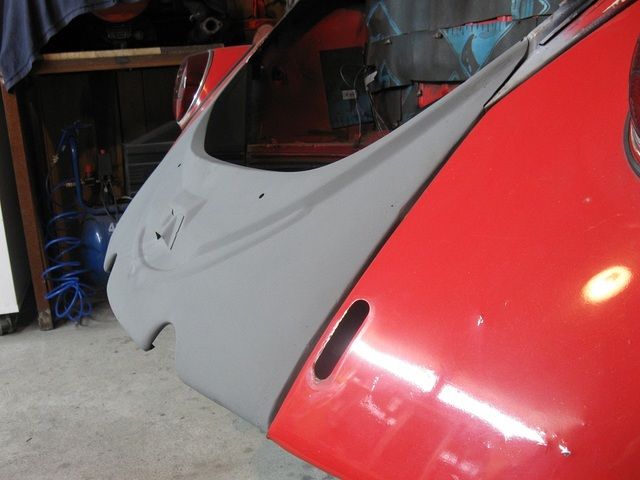

got the old valance off in mostly one part


this is why the valance needed to be removed



it's also pretty smashed as it sit's low at the back of the car and would drag on driveways etc..

bashing the exhaust when it hit the ground

Share this post


Link to post
Share on other sites

some more damage


started by removing the inner panel


that way i could get in behind the valance it's self with the welder/dollys/sandblaster etc...


started on this side

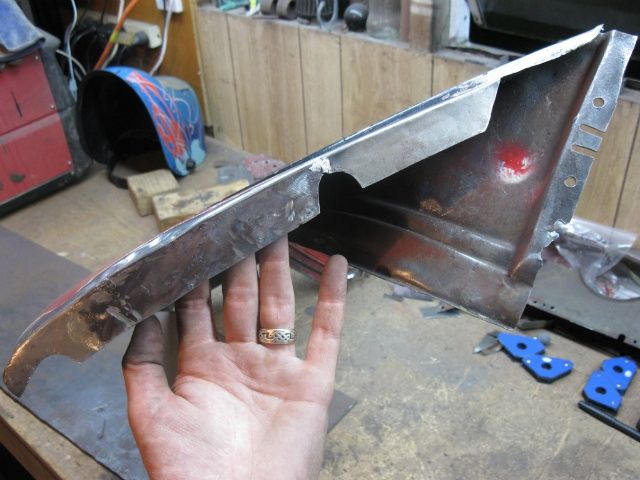

then did the top part, should have just replaced the whole thing


sanded down


needed heaps of little repairs like this


For the other side i replaced the whole thing, i didn't cut the shape out for the fender bolt, i thought i'd just drill a hole the same as the fender has so when the fender is bolted on so is the valance, good idea? dunno yet, i'll have to go back and fix the other side



this patch was tricky as fuck


fit's better than the other side now though

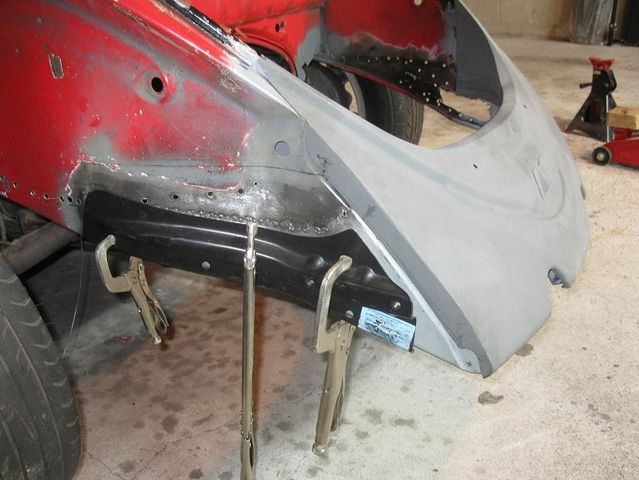

another test fit


smoothed out


Share this post


Link to post
Share on other sites

more sandblaster etc...


the inner panel there, was bent, rusted and needs alot of work

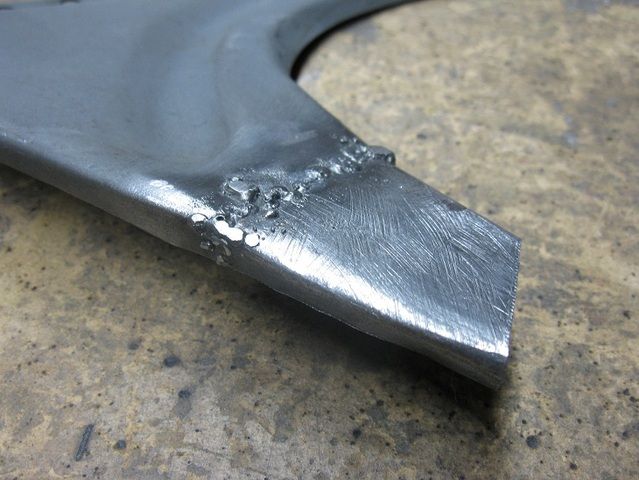

started by knocking it back into shape, then trimmed the raggy bottom edges

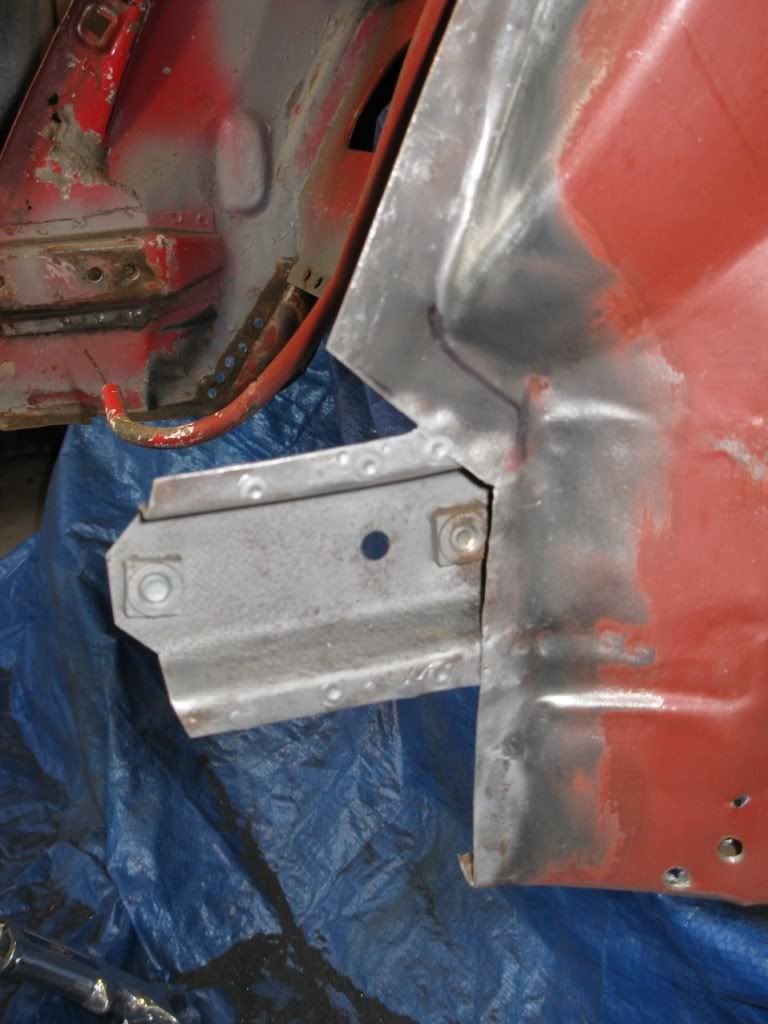

this thing is normally bends back(up in the pic) and is spot welded to the bottom of the valance, I wanted to trim the valance down to give more room for the exhaust system, so i rolled the edge under and then needed to extend the inner panel to meet it.

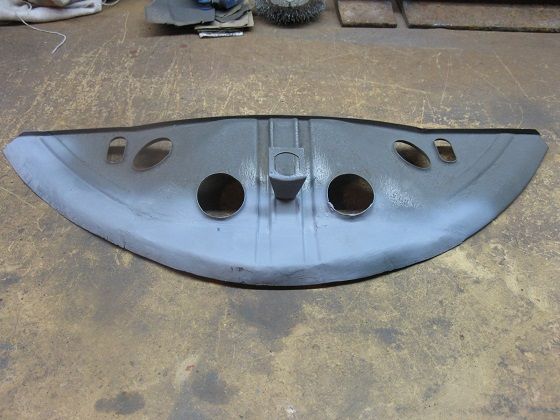

but first, an't it pretty.

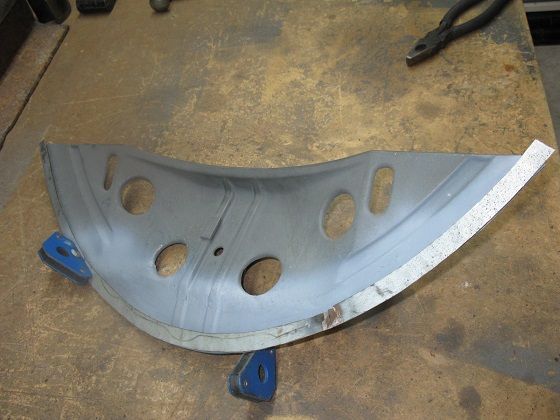

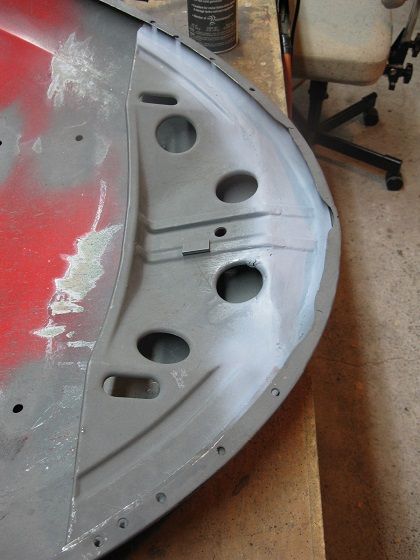

so, started fixing the inner panel

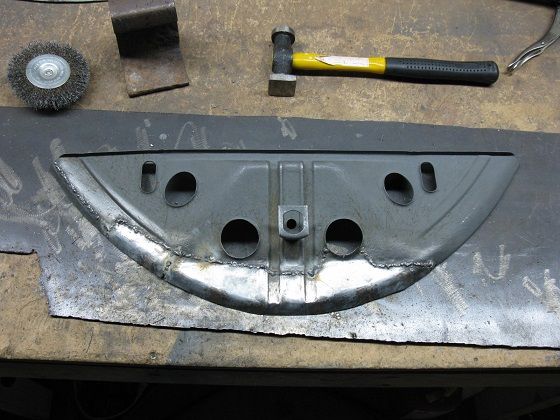

here it is welded in place


first i had just folded the end over but that looked shit, so i did a little hammering and stretching, much better.


Share this post


Link to post
Share on other sites

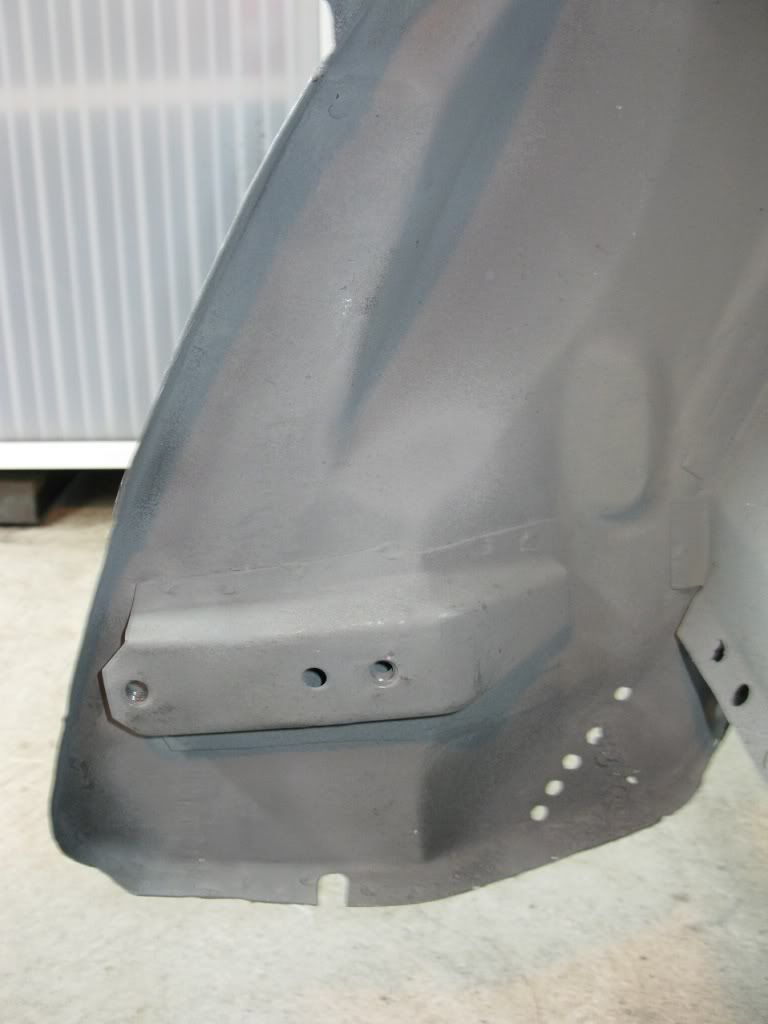

Above birdshit was ground down, I then filled the hole for the fender bolt on the other side so they matchy matchy


I'm going to make this panel bolt on, rather than weld it back on, will make pulling the engine even easier.

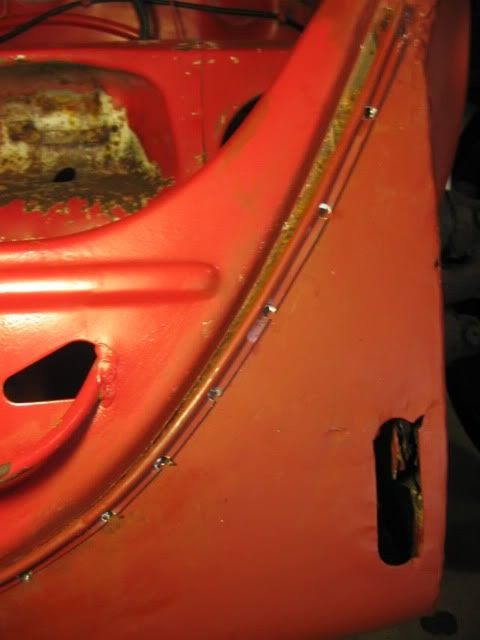

With the valance sorted, i took the spot weld drill and cut off wheel to the rusty thing that use to be a bumper mount.


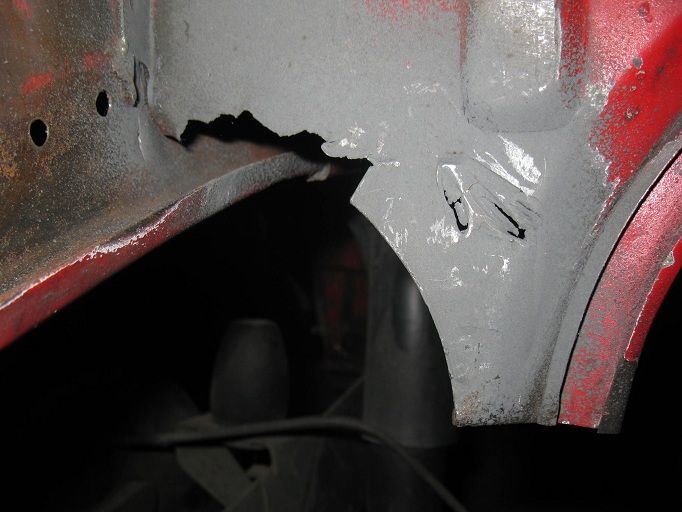

this part of the car has cleverly been designed to create as much rust as possible


not much left of the old one


also removed the inside engine tray so I had full access to both sides of the panel


out


again you can buy these panels as replacement pressing, but they are not very accurate repro's of the factory metal, so I thought i'd have a crack myself.


wish i had real metal work tools and not just a hammer and a vice, still pretty happy with the way they turned out.

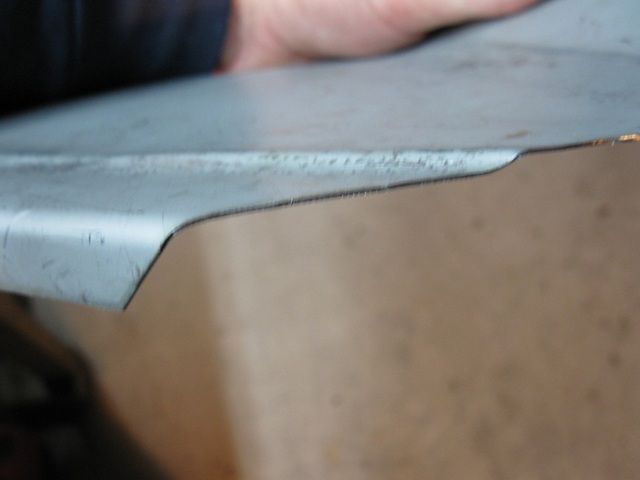

this was fun, had it make some cuts to get the metal to bend in the right places, then weld back together, then grind


then I cut the rust out


baja spec


fitted in place


and welded up

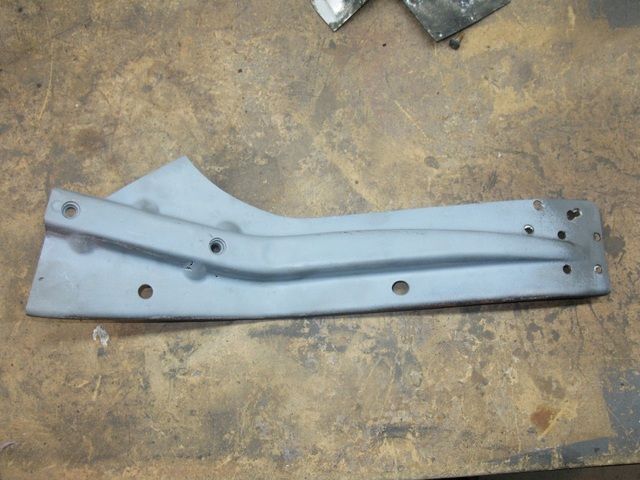

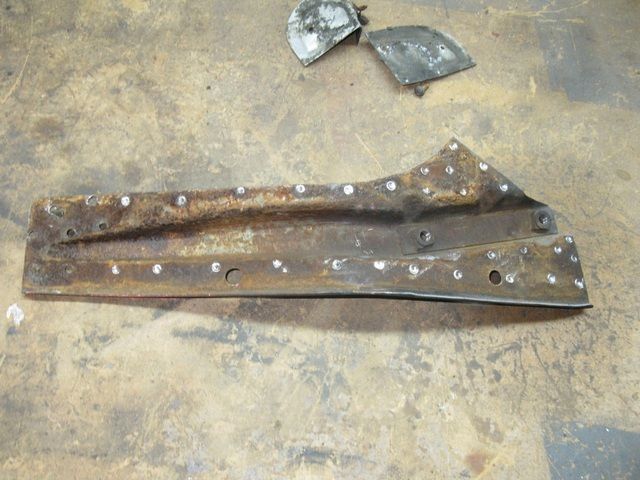

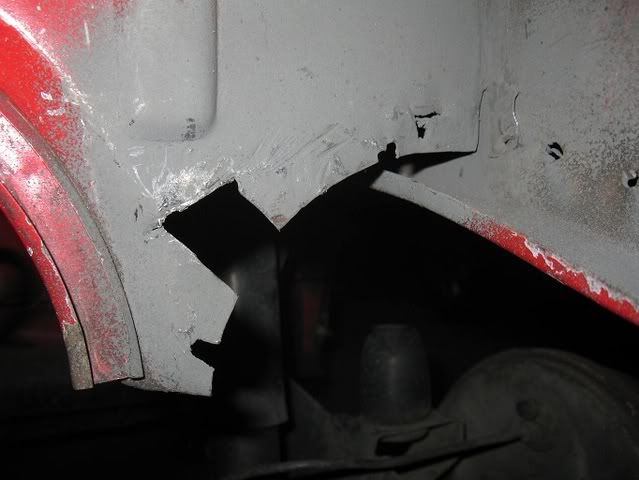

on to the other side, something like 36 spotwelds on these pricks

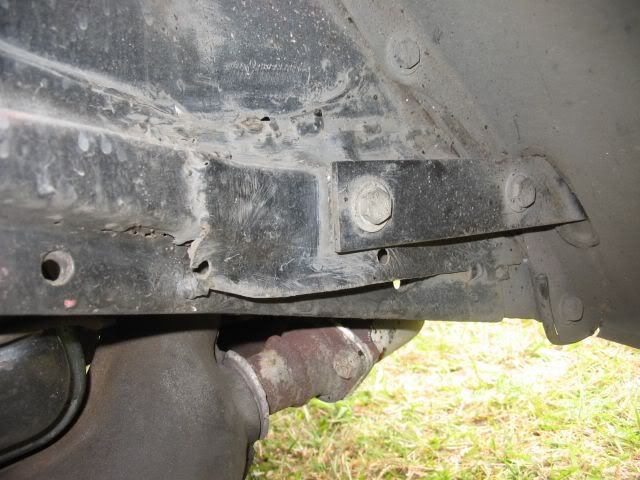

thought about trying to fix this mount up, but na

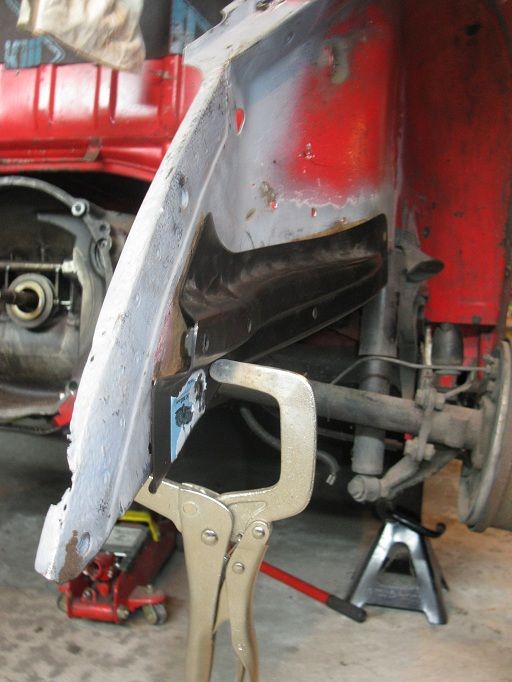

got two new ones from the metric nut in chch


they fit very well, just a little long at the bottom edge, easy fixed


and that's me up to date, i have ground the welds down on the patch and have started making up the replacement panel for the drivers side quarter and will hopefully let that in, in the next week or two, from now on this is going to be a slow update thread.

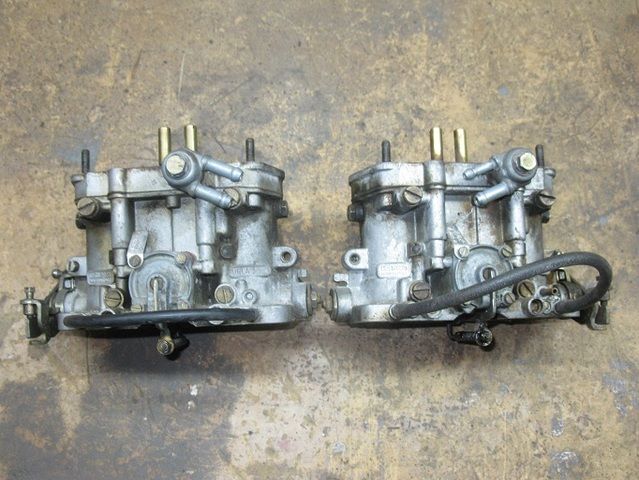

i also scored these on TM, 36mm DRLA Dellorto's got em cheap as some one thought or was told they were sidedrafts, they are not. bad for ford owner, good for me!


Share this post


Link to post
Share on other sites

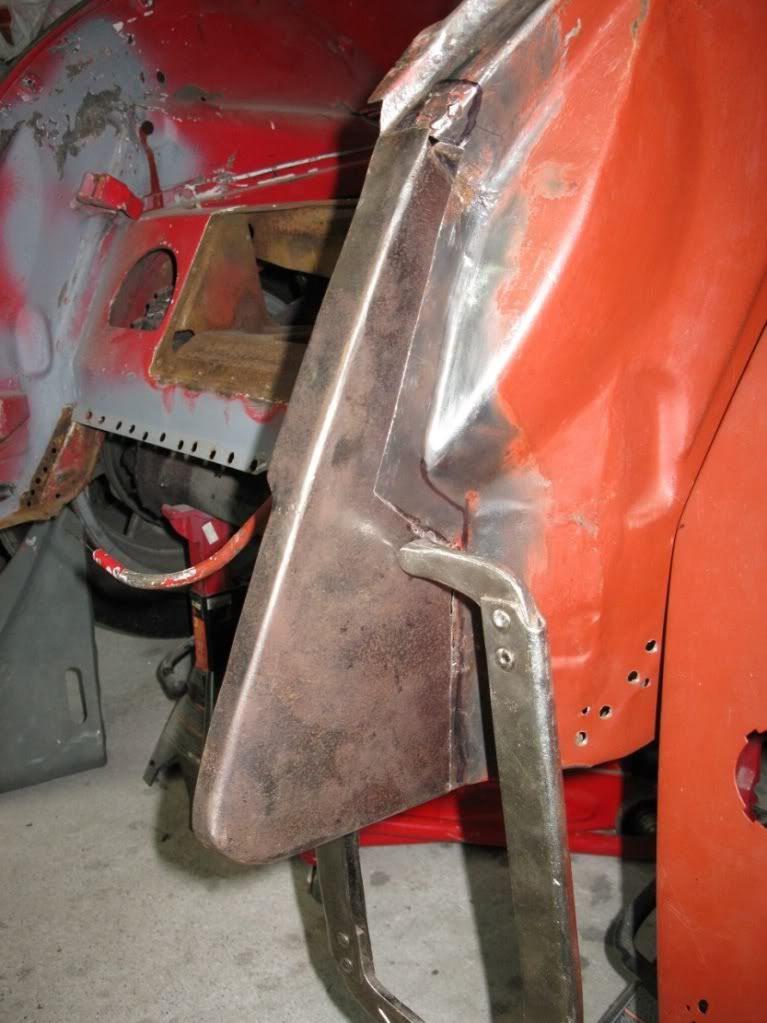

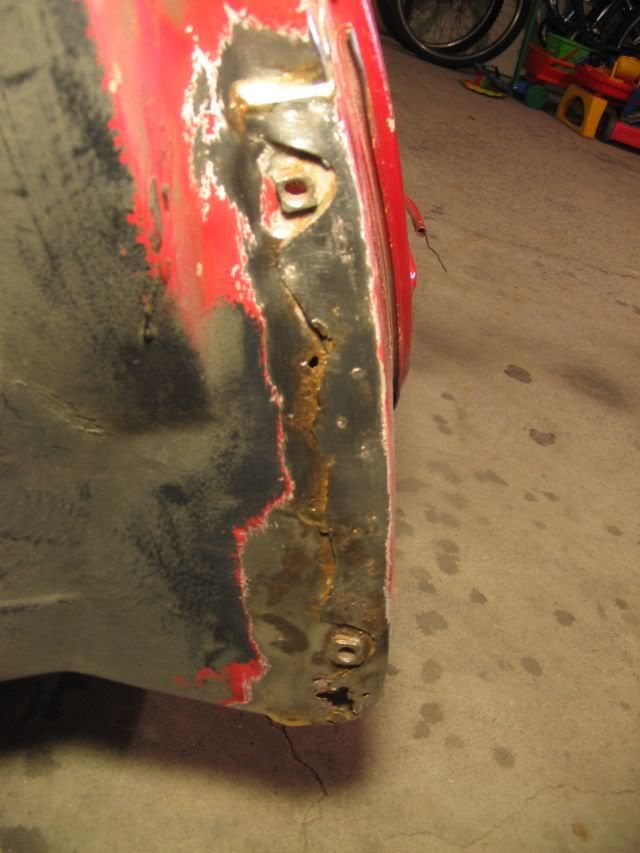

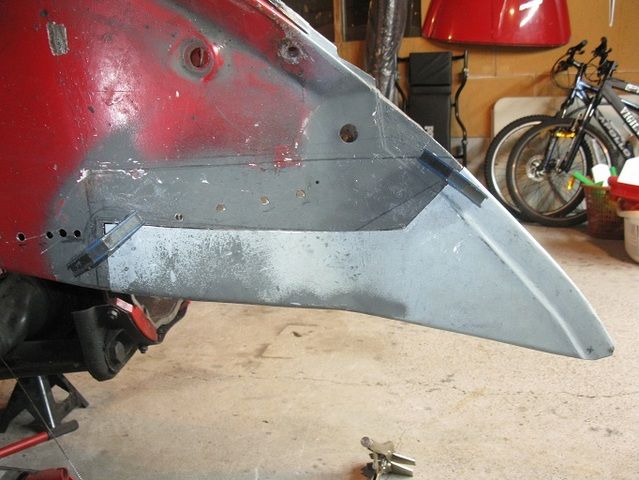

got onto the right side, had to replace more than the other side as the damage went up a bit higher up.


chop chop

so the replacement had to be bigger


i can not tell you how long this took to make, ages, just ages.The indent where the valance overlaps took some thinking and a lot of hammering, pretty pleased with how it turned out.

and just when i thought i was getting there, i offered the panel up to the car and it was not bent enough.


so i pushed until, crack! back to the welder.

as you can see in the first pic, the panel was not long enough by 5-6cm, i did this just to save a bit of metal

oh well , the plan was to join it at the bottom then let in a small patch on the side, but as i was trying to fit the replacement, i found i'd cut it too short :evil:

I spent another night extending the panel to fix my fuck up.


at lease I got to practice my welding more.

This is the finished thing.


then tacked in place and test fitting the fenders etc.


inside


and welded in


spent alot of time smoothing it out as best i could


eally hard to get a good photo with the reflections, not perfect but the bumper mount will cover it anyway :lol: :lol:

I took a photo in primer but it just looked completely flat.

I was very happy with this finish, as i was stressing about it a bit with all the angles etc.


I been so focused on this panel so much, now it's done I'm not sure what to do next? got to put the engine trays back in I guess then the bumper mounts.

Share this post


Link to post
Share on other sites

Been meaning to update this for age's, not that I've done heaps, just keep chipping away.


everything still seems to fit

Started on the engine lid


and found it's full of lead! oldschool right there!

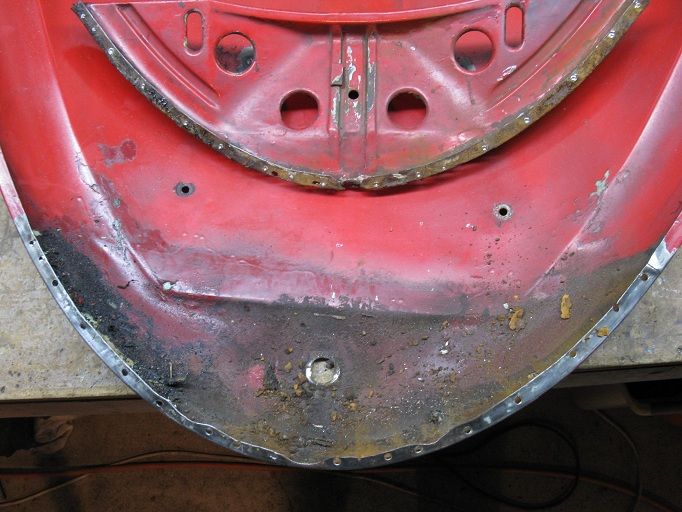

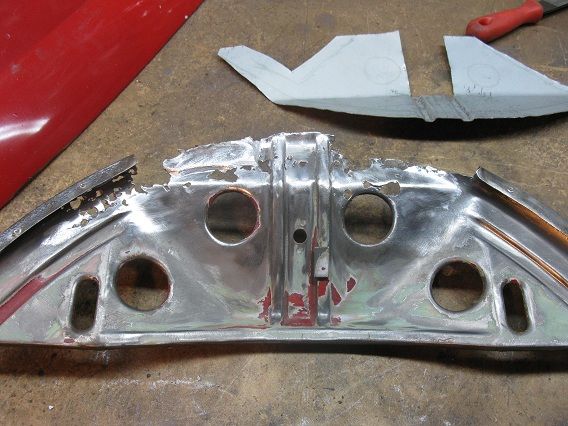

removed the inner panel

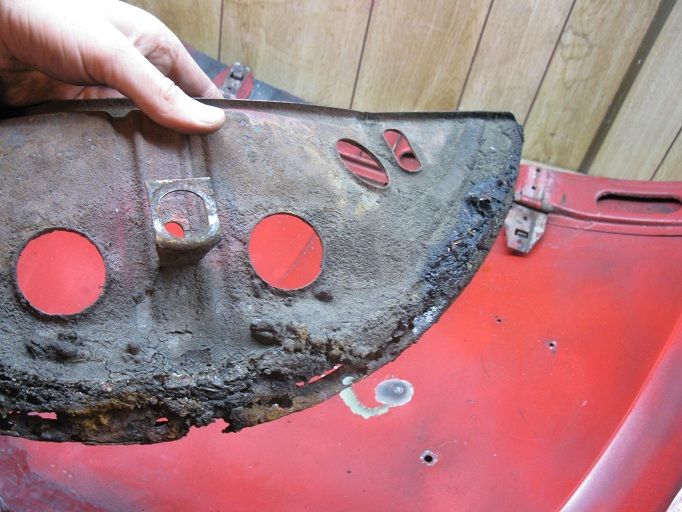

50 years of crud


found some factory paint


this is lead also, and crud

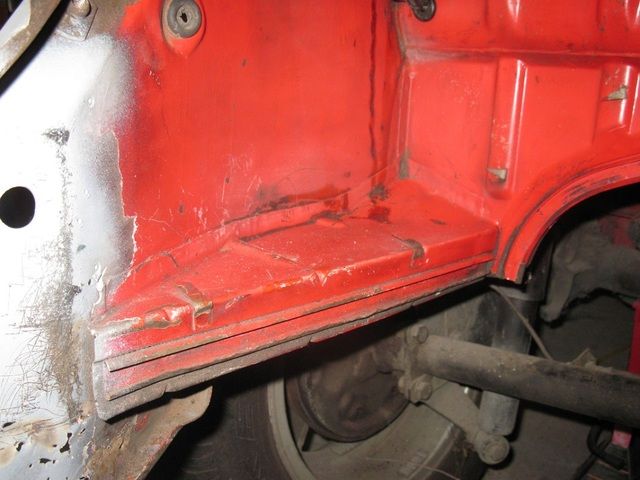

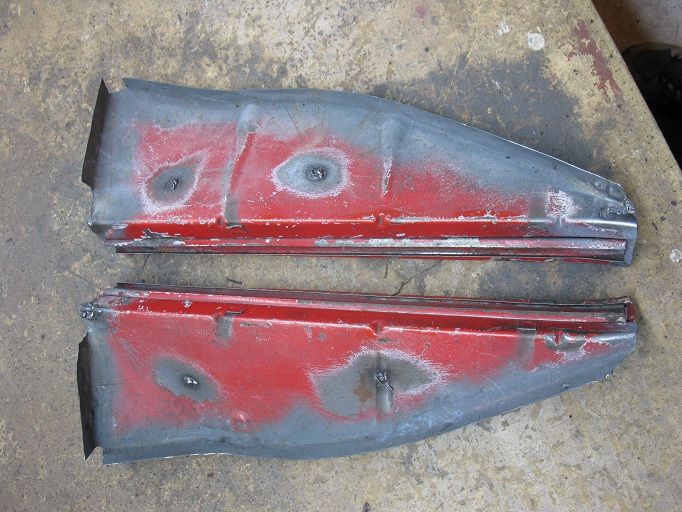

fixed up the engine bay side trays


and the engine bay corners

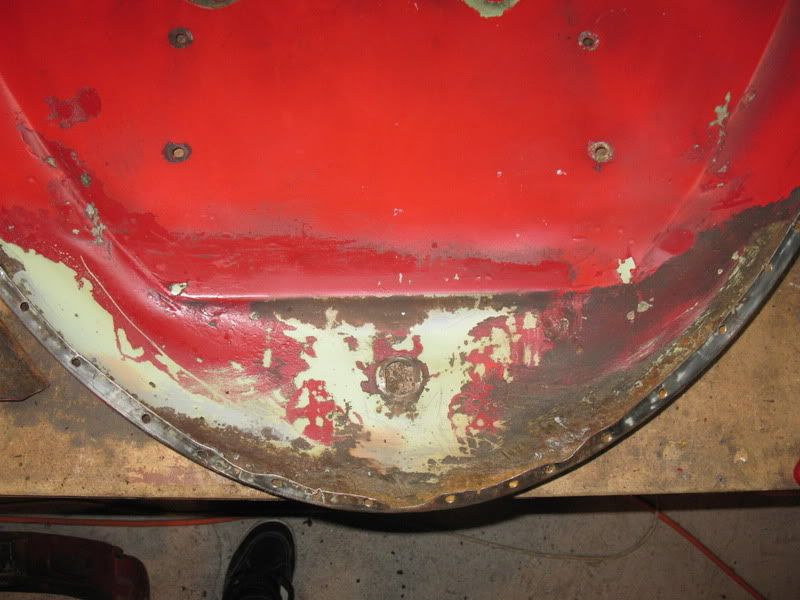

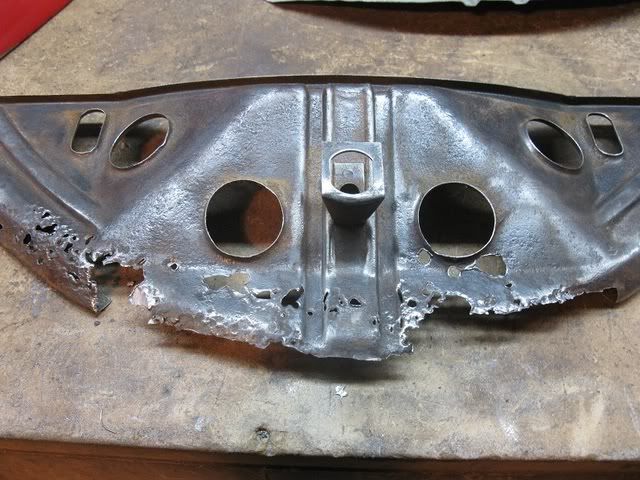

all that was left after removing the lead and rust



Share this post


Link to post
Share on other sites

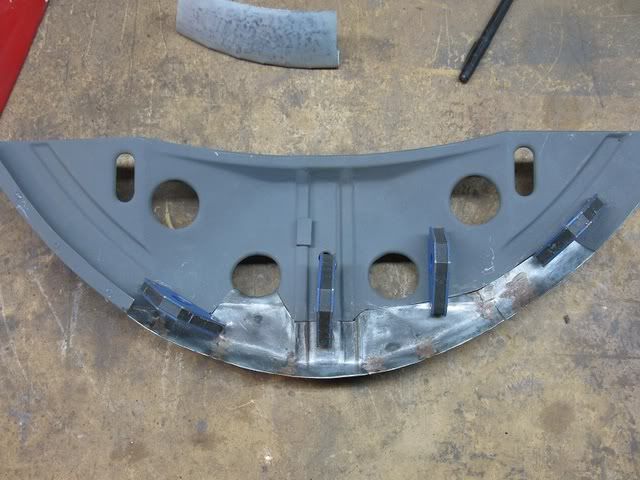

So in the above pic you can see the start of the repair panel I thought I'd have a crack at making

This is actually the second attempt to make this piece, the first one I just kind of free styled it, which is why it failed, I had to take a much more measured approach.


so after much fuckingabout....



it might actually be getting close.

And the newest addition to my high tech arsenal of metal working tools, behold!

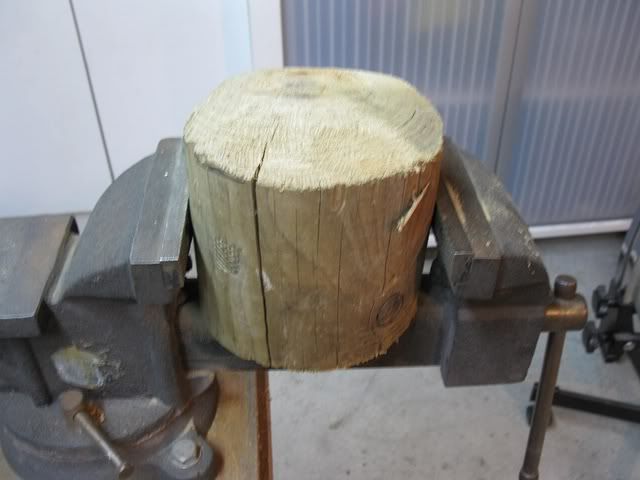

I made this out of a old post so i could make a start on the outside of the lid,


chop chop choppity chop

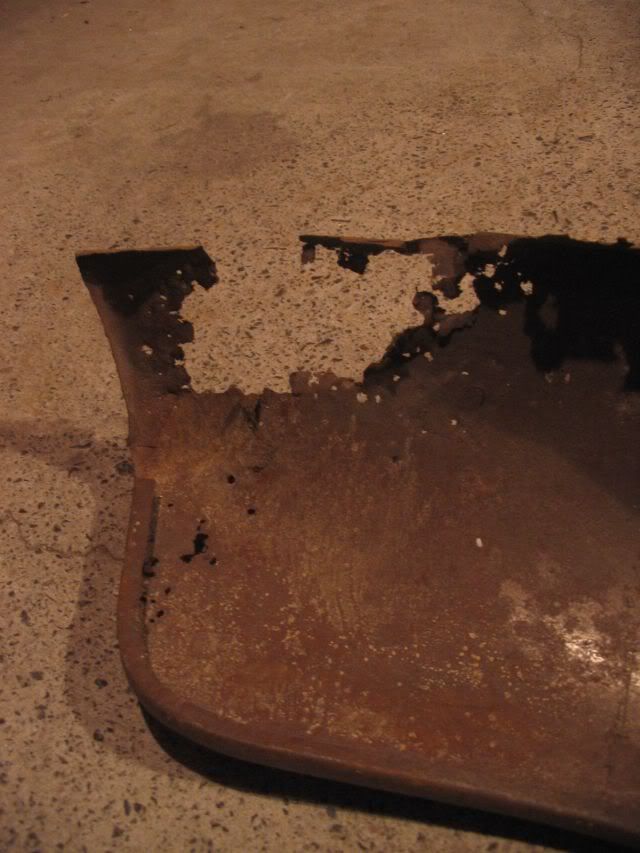

check out the rust holes!

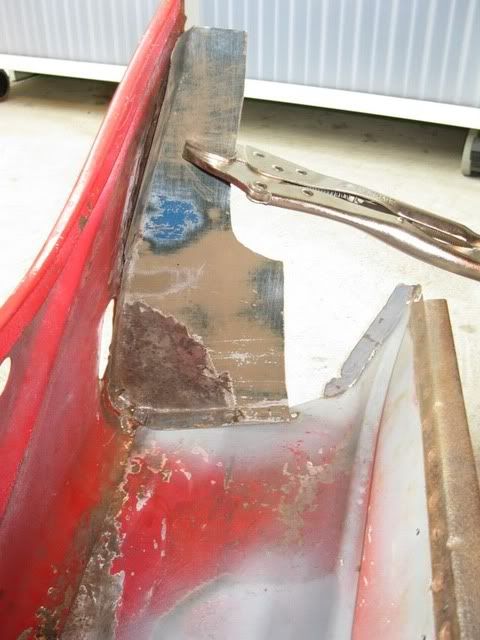

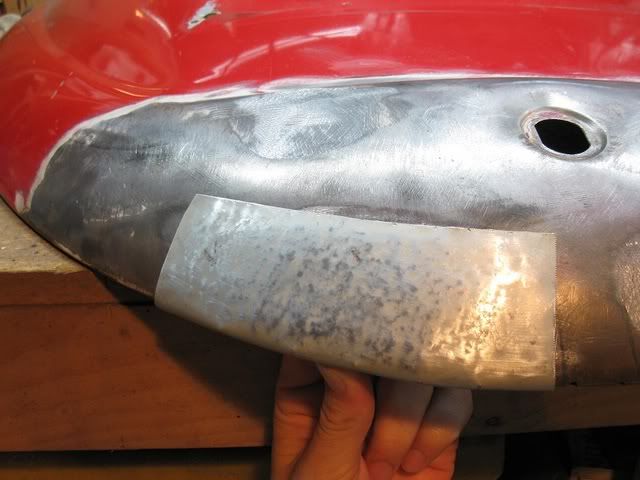

fitting up the patch

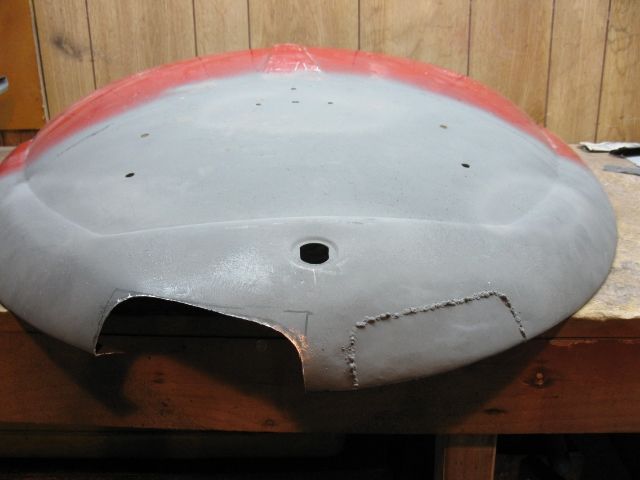

tacked up

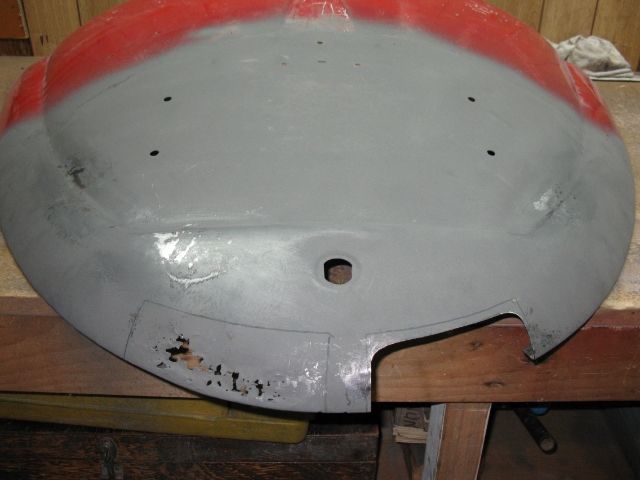

didn't notice that the lids shape had relaxed after I'd cut a hole in it, about 5mm's of wonk


nailed the second one better

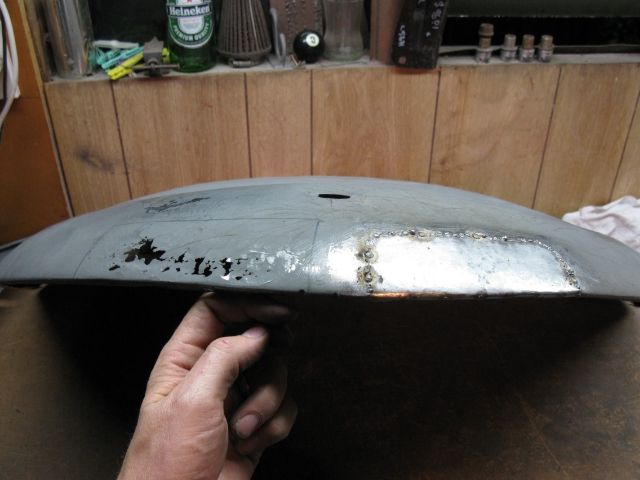

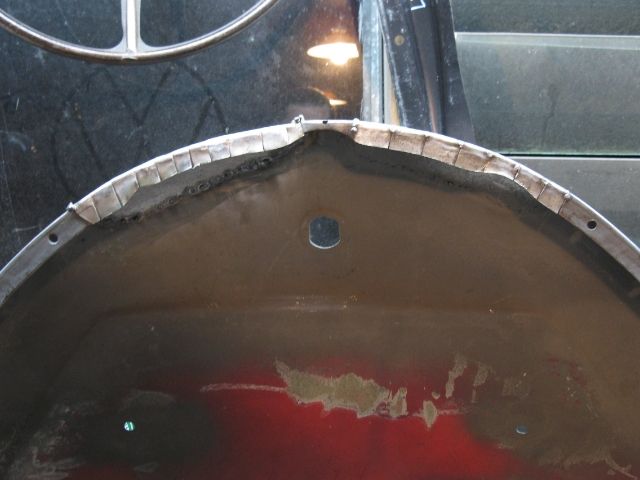

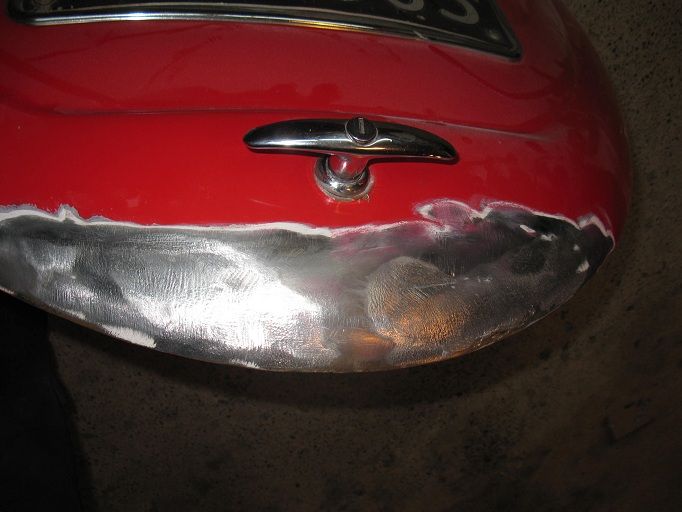

the under side, many little cuts to get the metal to fold under.

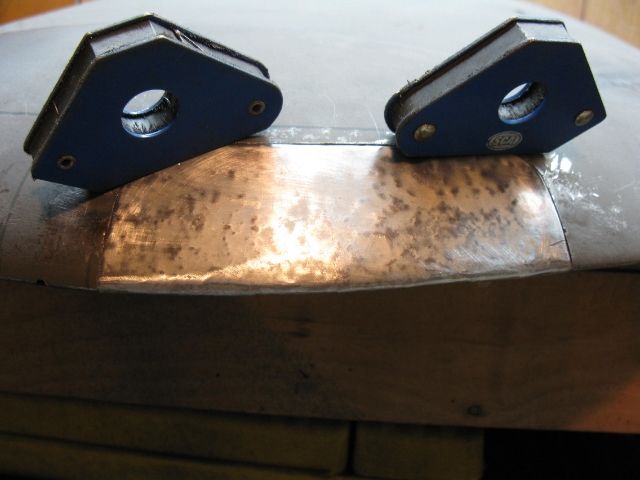

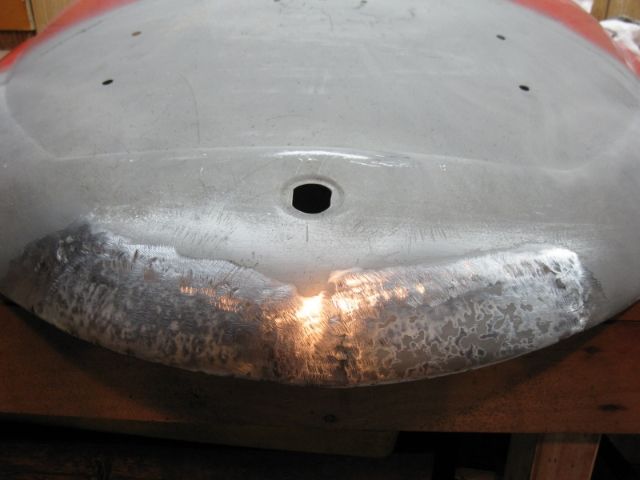

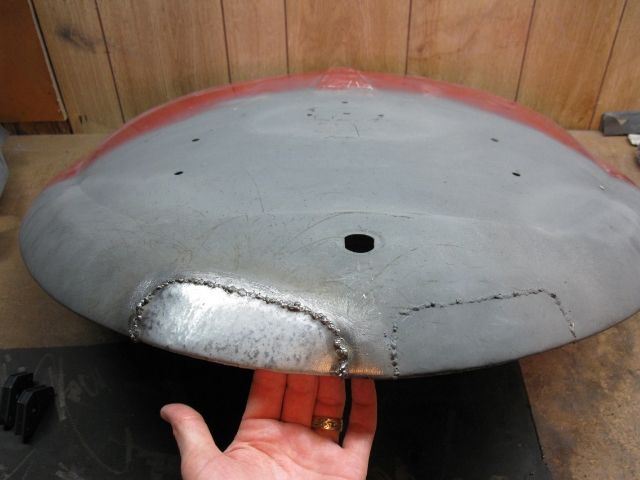

the outside all ground down

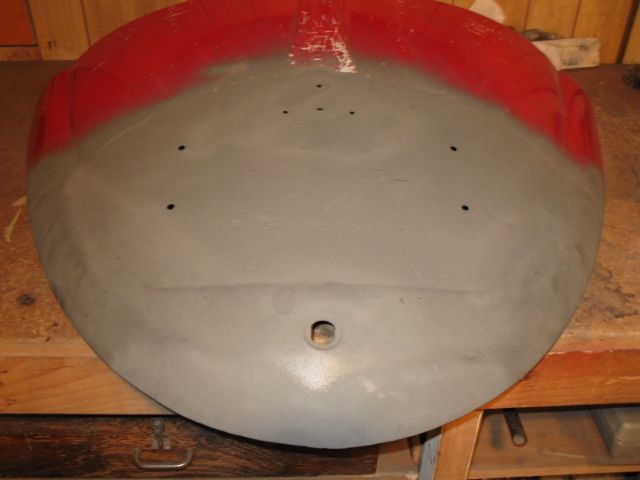

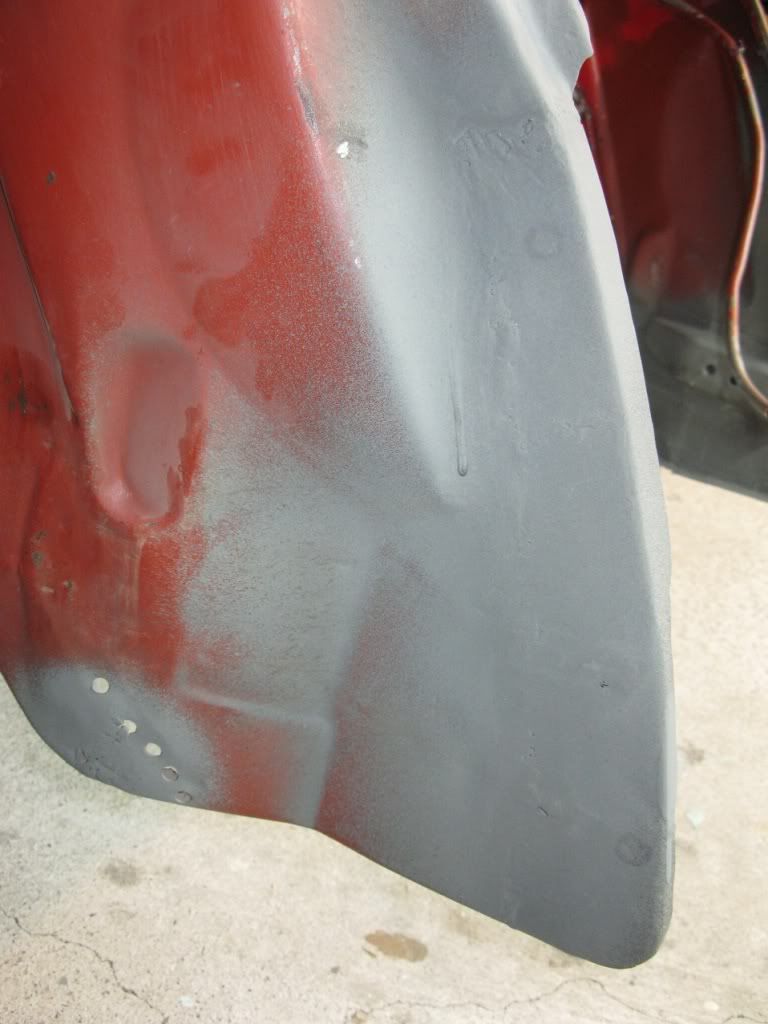

and primed


with the lip all smoothed out


not bad!

1 person likes this

Share this post


Link to post
Share on other sites

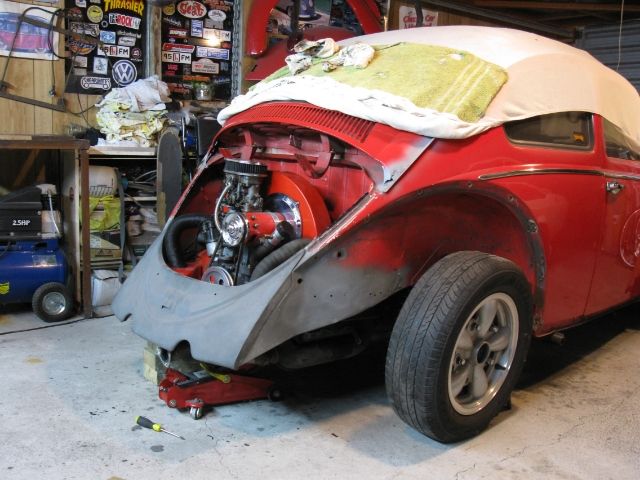

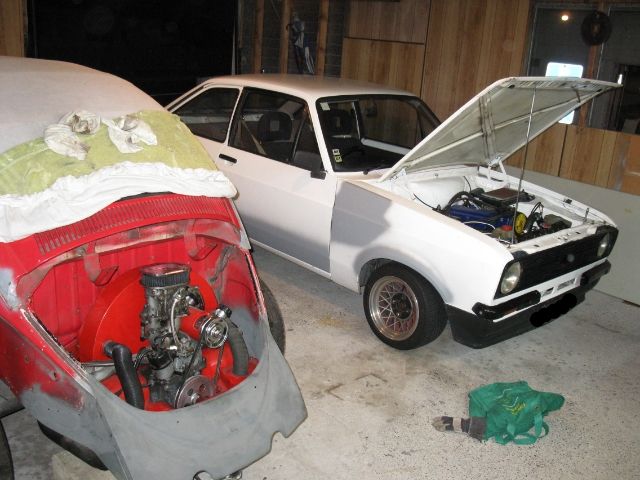

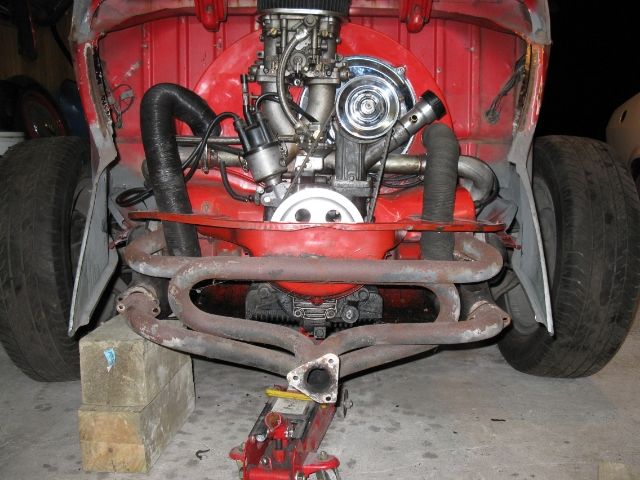

In other news my mate ed came round and we refitted the engine the other friday.


and it still fits!

the side trays are just sitting there in these pics...


wanted to be sure after chopping so much of the rear off, that the 1-2 side would clear, It was always a mission getting the valve cover off that side as the body was so close, is that normal? is it cause I have a 1600 in a 1200 body?

Anyway it's still close and maybe a little better? but not worse so sweet as!


also did the points on eds esky


then took it for a thrash in the waitakes! such a awesome wee car. icon_cool.gif

back to working on the inner panel now, slowly getting there!

meanwhile, a little bug waits.....




Share this post


Link to post
Share on other sites

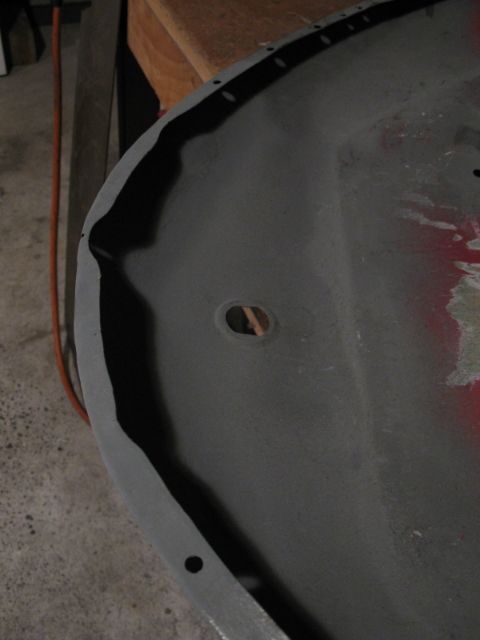

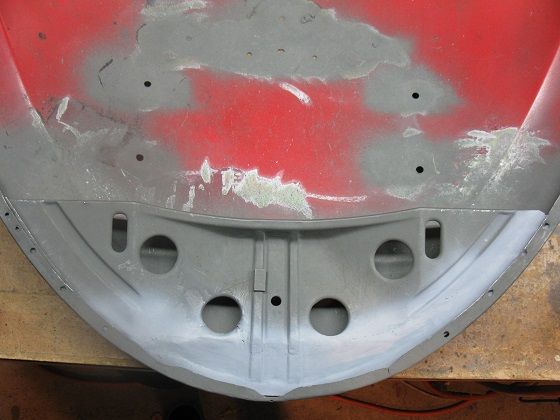

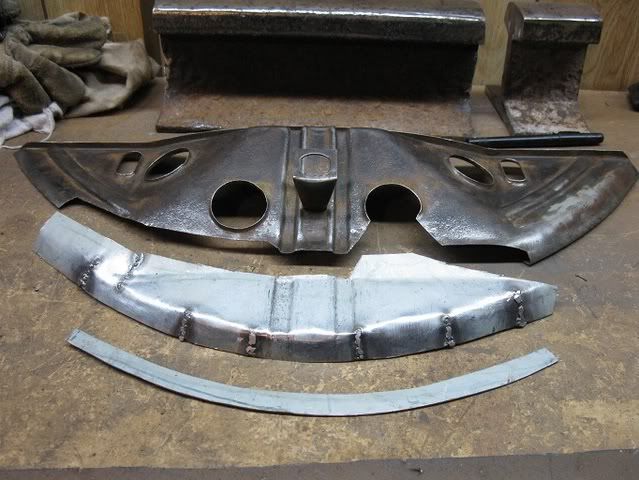

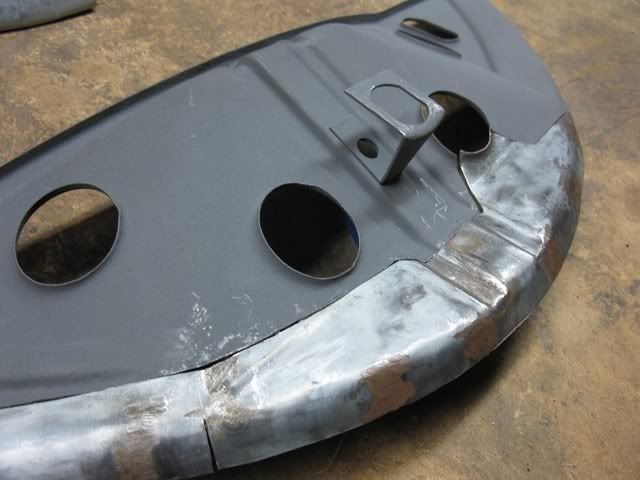

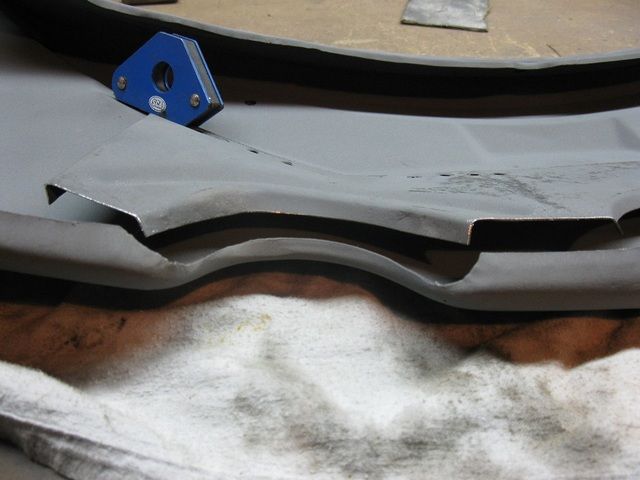

Got a bit more done on the inner panel for the lid.


smoothed out


seems to fit.



I still need to figure out how I'm going to weld this together, I thought about just cutting the rest off and welding the inner panel into the lid with out the second layer but I'll see if I can make it look factory.


Share this post


Link to post
Share on other sites
