66gt

Tim's 1966 Cortina GT 2 Door

30 posts in this topic

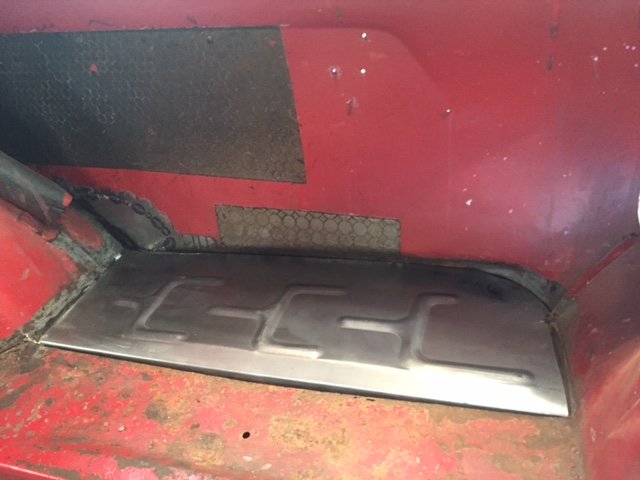

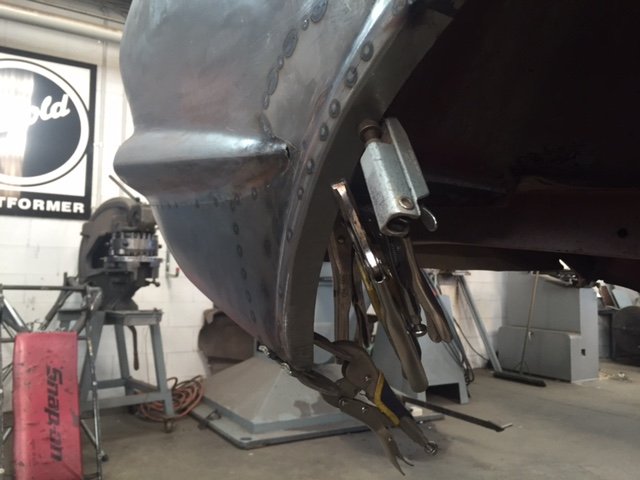

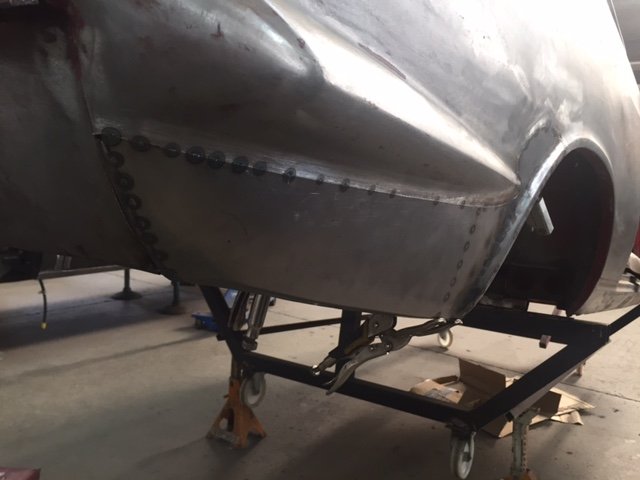

Progress on the lower right rear quarter. Need to drop some more parts to the powdercoater and plater.




3 people like this

Share this post


Link to post
Share on other sites

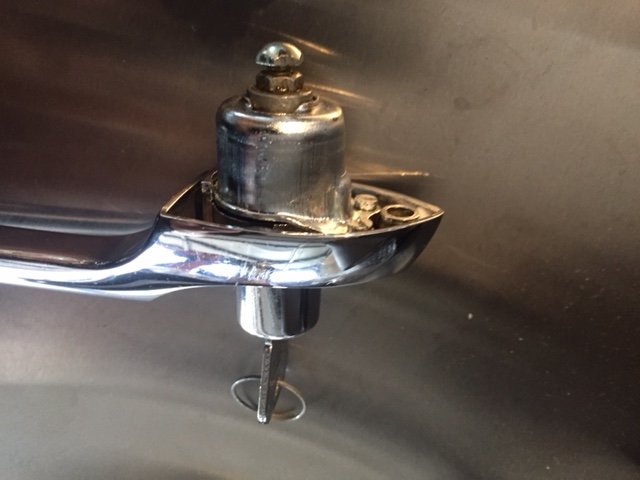

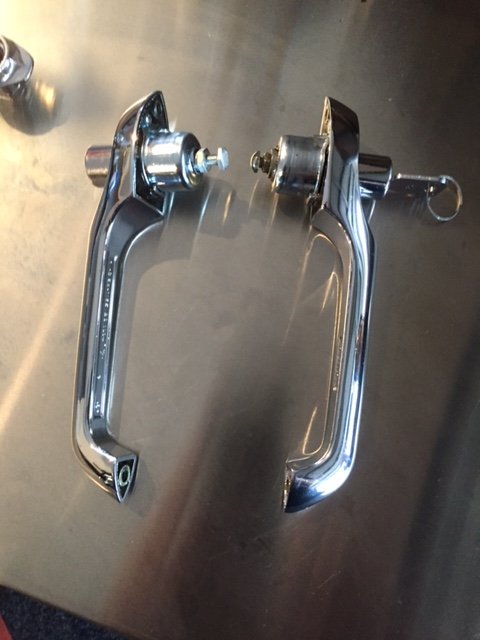

Bugger all progress apart from restoring the door handles. More parts to go to the powdercoater and zinc plater man this week.




1 person likes this

Share this post


Link to post
Share on other sites

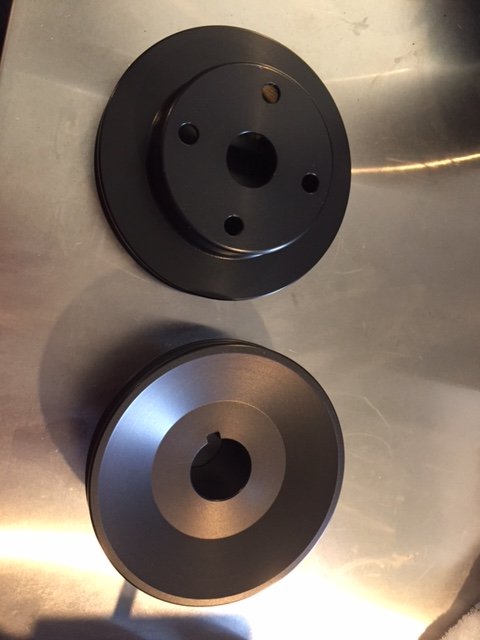

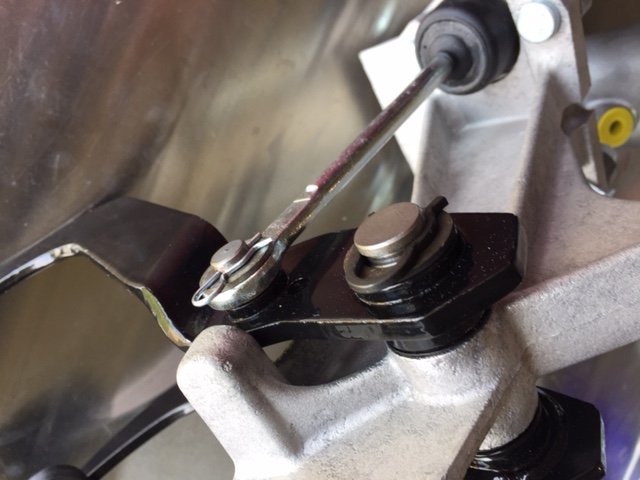

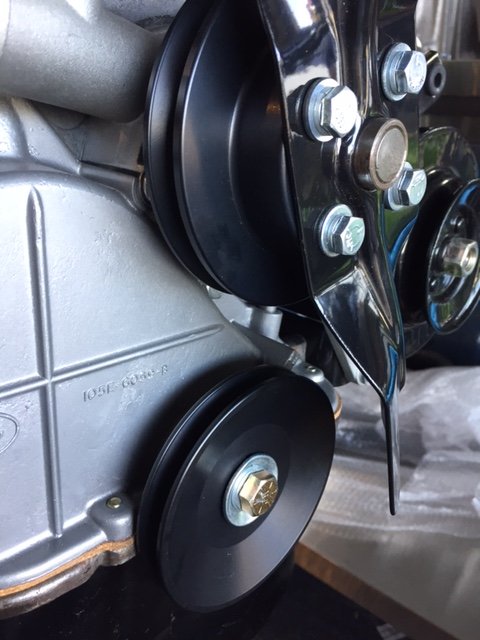

I have finished the pedal box and installed billet crank and water pump pulleys. The body work has ground to a complete halt after the owner of Custom Metal Shapers was banged up in jail for 2 years about a month ago. Pretty fucked off about the whole thing so I'm currently working on getting someone else to finish it. I was hoping to have had it just about on the road now however I can see it being another 12 months away at this rate. Bloody frustrating however it is was it is





1 person likes this

Share this post


Link to post
Share on other sites

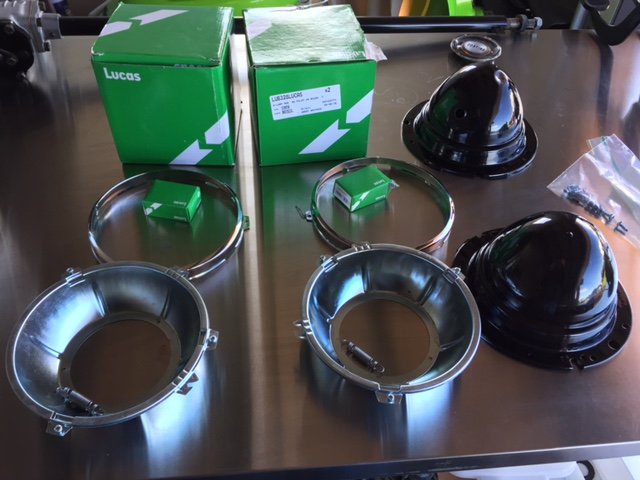

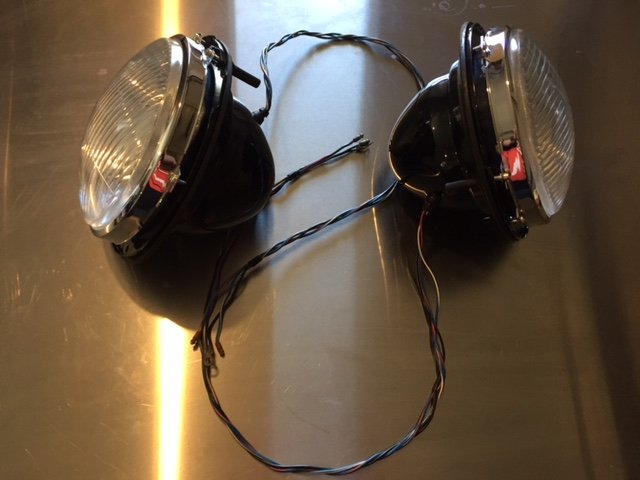

Rebuilt the headlights today with mostly NOS parts. Should have who is going to complete the bodywork sorted in the next couple of weeks after the CMS fiasco.




2 people like this

Share this post


Link to post
Share on other sites

Stripped an old gearbox for the main case and then stripped and cleaned the mainshaft etc ready for reassembly. Hopefully I should get the mainshaft assembled tomorrow and it all installed in the case.


5 people like this

Share this post


Link to post
Share on other sites

Finally assembled the gearbox last weekend. Here's the main case ready for the internals



Share this post


Link to post
Share on other sites

Assembled the mainshaft all new bearings and fitted the needle rollers to the laygear.



Share this post


Link to post
Share on other sites

Put in the lay gear and input shaft. Used a bit of weed eater cord to lift the lay gear into plus once the mainshaft installed so the layshaft can be slid in. Also used alloy input shaft housing and rear mainshaft bearing carrier.





Share this post


Link to post
Share on other sites

Used new gear selector forks as the old ones had nice big wear grooves which causes the box to jump out of gear. Put in the selector rods and then wired the rod securing bolts.



Share this post


Link to post
Share on other sites
