Finished!
Bit of machining porn for you!
- 71
-
2 hours ago, Testament said:
some real serious machining gear there - where is that/what type of gear is it?
Its at Fisher and Paykel PML. Not sure of the exact machines but they have some pretty amazing gear. The last photos are on a 4 axis to do the angled cam and exhaust faces + valve guides etc.They can do some seriously good work!- 1
-
3 hours ago, rustisize said:
This might have been asked but where are you getting your castings done?
Progressive Castings for iron and Skellerns for the others. (owned by the same people now anyway)
- 1
-
- Popular Post
- Popular Post
Almost finished!
Bores have cleaned up without any defects. Ports look a fraction off on some of the bores though so hopefully I can cut some valve seats that work!
Not going to lie, its quite exciting!
- 57
-
13 hours ago, yetchh said:
Shit there's some meat in those bores..
That photo is with the bores undersize. They then go in with another tool to size it and do the combustion chamber bowl. Then there is about 4-5mm on the walls. Really prone to cracking so I have thickened things a bit.
- 3
-
- Popular Post
- Popular Post
Shes a pretty big job. Been at the machine shop for a week. 1 more week to go!
Casting is looking good. Yet to find any lumps of sand or porosity apparently!
- 58
-
- Popular Post
- Popular Post
What an engine!
I wish I could say this was my crankcase! Sadly its on loan (like most of the other bits!).
- 28
-
- Popular Post
- Popular Post
Left hand hanger done. Second time lucky to get this one.
- 23
-
- Popular Post
- Popular Post
Almost worked. Got quite a bit of shrinkage in one corner on both parts.
So I'll have another go and add some big risers to those areas.
Other than that it worked really well!
- 30
-
- Popular Post
- Popular Post
All the patterns and moulds finished for the Spring hanger body. Ready to go to the foundry.
The sand isnt great (I think the resin is going off) but its worth pouring it anyway to see how it works.
- 25
-
33 minutes ago, flyingbrick said:
55kg! Jesus!
Does it still need a flywheel?
You can see this one doesnt even have any counter weighting. Its just round! The later ones were counter weighted and weigh about 35kg. Still a monster!
Has a multiplate clutch which I guess acts like a flywheel.
- 8
-
- Popular Post
- Popular Post
Real crank in the lounge. 55kg beast!
- 27
-
1 hour ago, JoKer said:
this just popped up on the faceballs : relevant to thread?
edit : dang link wont work for me / spam?& this guy seems to know his stuffWould be nice to find that in a shed!
- 1
-
- Popular Post
- Popular Post
Bit of CAD. Slowly slowly getting there. Most major parts are detailed. A lot to go.
- 16
-
7 hours ago, avengertiger said:
That's been around a bit over the last few years. Bit expensive for a broken one with no history!
I'll sell you one of mine for half that!
- 1
-
Thanks, I guess you are using ABS? PLA doesn't smooth very well with any solvents I have found unfortunately. Your patterns look so pretty compared to my junk haha.
What grade aluminium ingot are you using? Any plans for heat treating before machining or is it hard enough fresh that it will machine okay?
Yeah ABS.
Ali is LM25 which machines pretty well as it is or can be heat treated. I havnt had any heat treated so dont know the difference in machining.
Investment casting is a little different since you have to get all the gas out properly. Im guessing youre casting into the PLA or do you burn/melt it out first?
-
Nice work! What post finishing process are you using on the 3d prints? They look great, keep up the good work.
I've been playing around with some aluminium casting using 3d printed patterns. Are you using nomograms to work out your filler & feeder systems? Made quite a big difference to my castings actually going to the trouble of specifying the gate, runner, sprue top & bottom areas. Although I'm investment casting down to 3mm wall thickness so likely a bit more picky than sand.
On the patterns that need a good finish I print at 0.14-0.19, inner patterns that you cant see I do 0.25-0.4. Rip into it with 120grit then I spray it with acetone. Usually you use acetone to make it stronger but in this case it seals the plastic really well so when you spray it with a primer it works mint. Then give it a 600grit.
The sand doesnt pick up that much detail so you can be pretty rough with the finish. Then give it a wax mould release and good to go.
I havnt used any programs for working out the runner system. Ive got some good casting books that give a couple of formulas and rules. Iv pretty much just done what theyve said and its been working.
Ive now got a good ratio for runner size vs volume for iron and ali. This will be the first bronze one.
-
- Popular Post
- Popular Post

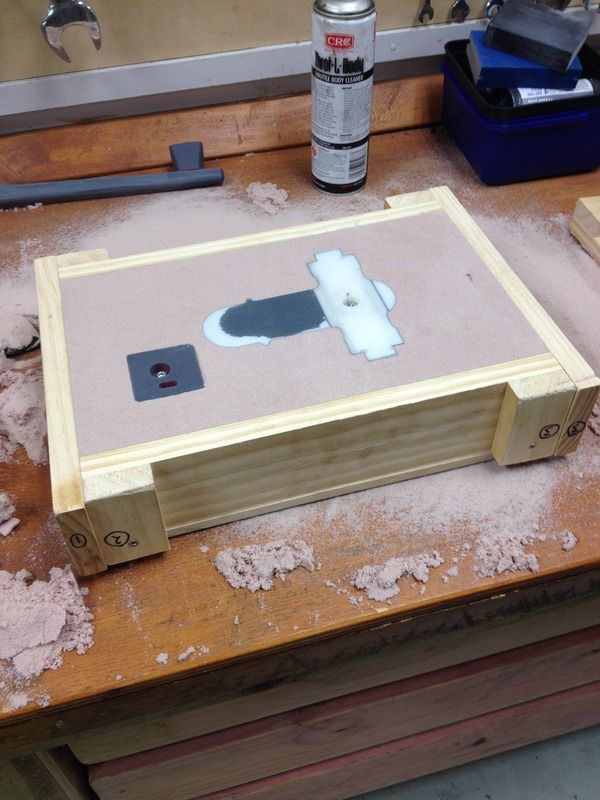

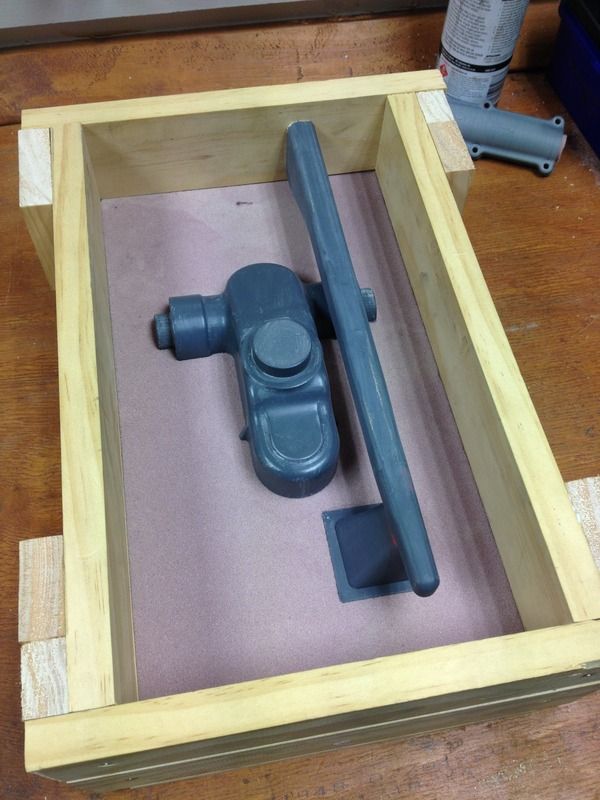

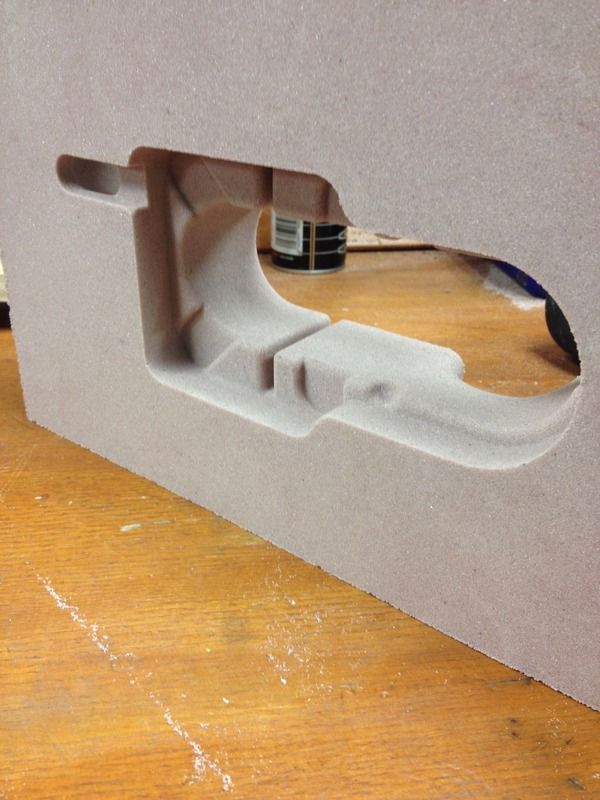

All the outer moulds made with runner/sprue etc.
Time to work on the inner core patterns and hopefully pour one early new year.
Working out runner system
Lower half of the mould
Upper half with sprue and filter
- 33
-
Just saw this and thought of your work. http://www.speedhunters.com/2016/11/pur-sang-argentinas-classis-auto-artisans/
Seriously cool stuff by those guys aye!
-
- Popular Post
- Popular Post

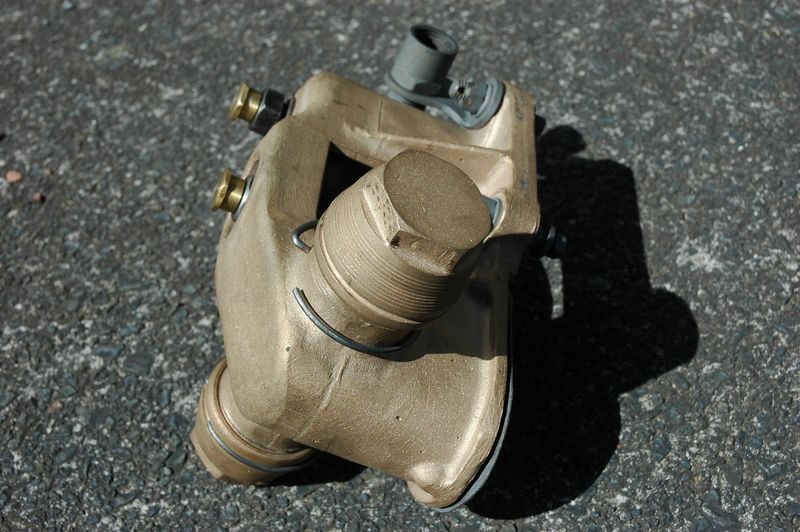

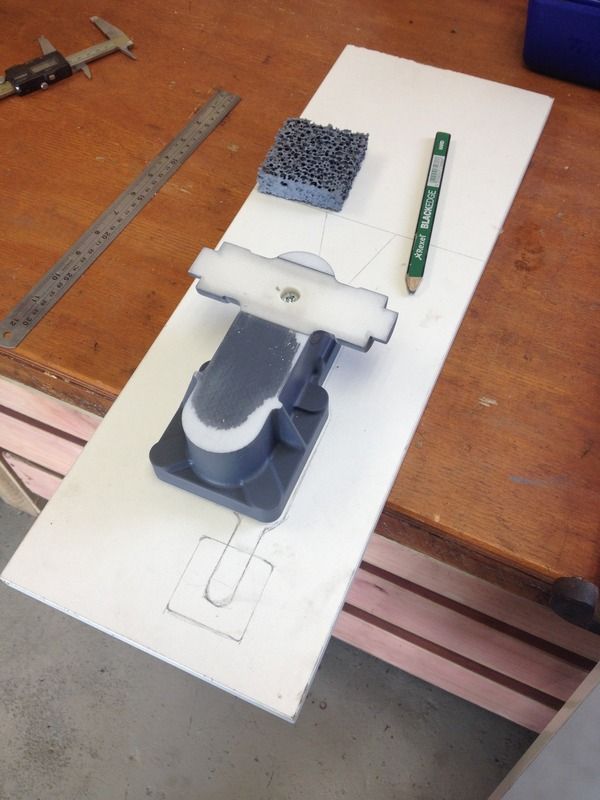

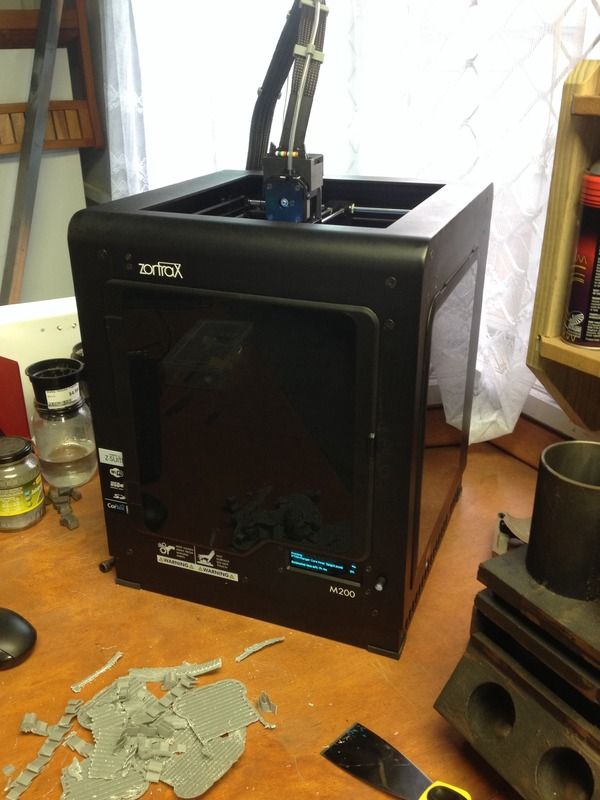

Making patterns for the spring hanger. Got a 3D printer! Does work for you while youre at work! So good.
- 27
-
Ive got an innovate MTX-L which has a bosch LSU4.2 I think. Anyway its been running mint for 2 years and just yesterday took it out and unplugged it to get the headers out of the car to weld a new muffler on.
Put it back in and now doesnt work. Reads 7.4 or 22.4.
I think I did a couple of tack welds before taking it out. Could this blow it up? Earth was right next to the weld.
Any way of testing these to see whats wrong?
Anyone got one for sale that I could get before this Friday?
Need one with this plug
https://images-na.ssl-images-amazon.com/images/I/618Yqo8z%2B8L._SL1500_.jpg
-
A friend of mine has spent over 20 grand on patterns for Norton dominator barrels, then it costs 1000 to cast each one and 1500 for mechaning,
I can imagine! There was 1000hrs in this block. So easy $50k if I paid someone. Who did he get to design/make his patterns?
All the patterns for the block cost about $500, casting was $400. All mates rates though. To machine I have had quotes between $6-9000 for the first one, $4000 after that but I should be able to do it on my machine.
There are 2 places in Europe who can make blocks and they charge about $17k with a 1 year lead time.
- 3
-
This is amazing, you have such good pattern making skills, do you think you could do a 99a flathead v8 block? I can supply you with old blocks and possabley 3d drawings of everything.
Anything is possible but the amount of time it would take would be huge. So youd need really deep pockets!
-
- Popular Post
- Popular Post

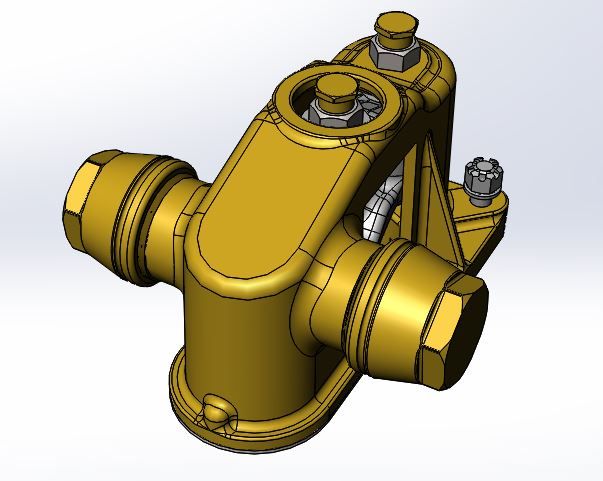

Bit of CAD on a T57 front spring hanger.
- 33
Bugatti T57/59 engine
