[Poo]

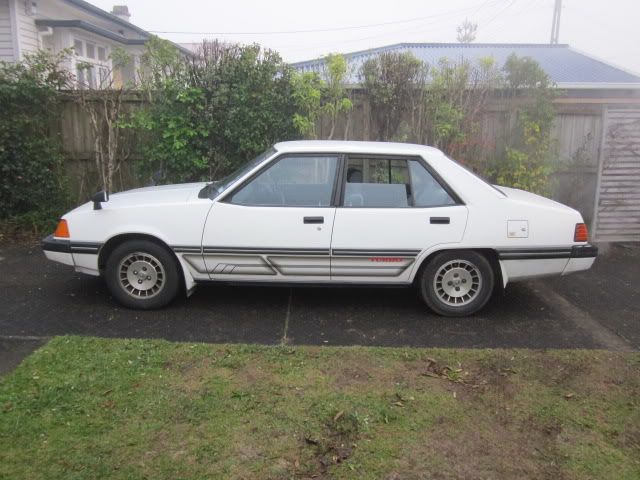

Nabbed off trademe a while ago.
driven it a bit and now its time for a bit more power and some low.

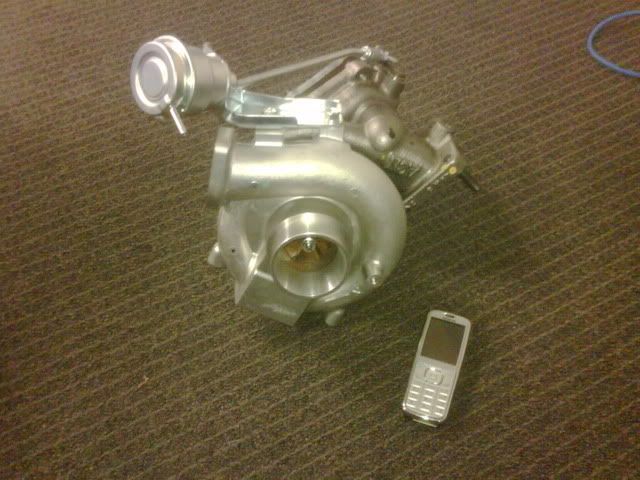

Evo9 turbo


Link


going to need this as i am going to stay single cam


pick of the unmolested engine bay




discussion you say?
http://www.oldschool...hp?f=18&t=24369

[Poo]

so ive had to move the trottle body from one end of the plenum to the other.
since im farking around with it ive choosen a larger TB off a mitsi Magna. 66mm vs the galants 50mm.


no hole!

welding by Sheepers.

new hole


blocked breather below the ports.......i will get a flange to block it off (cant of been working anyway as the hole was full of crap. the daiphram that controls the port is top left of pic.


car at Woolf. slight hicup. one of their car hoists is on the blink, so my car is off to the side for now.




ps. when for a hoon in both of Sheepers Celicas last night. fuck me, shit, etc. those cars are mental/cool/i giggled as the cars battled for traction.






.

[Poo]

so the exhaust is going to be a massive pain in the arse to make.
check the picture of the turbo (further up the page) and notice the angle that the exhaust exits the turbo.........

now have a look at pics of my engine bay.
the exit off the turbo is heading for my brake booster/reservoir. it is going to be very tight in there.

[Poo]

.
.

yup, Mr Philip Weston was right (is he ever wrong)

you could angle mount the turbo - the way I was going to do was kind of a mid-low mount with the header pipes coming up and then bending back down to the turbo inlet, like this

the compressor housing will need to be turned so its facing the up/the right way. (hopefully its as easy as pulling the massive circlip and rotating........)
also the wastegate actuator will need to be relocated..... as it mounts to the compressor housing at the moe.



and







.

[Poo]

so ive got a bit of 3inch ally pipe.


then give the pipe to sheepers to do this.



and



seriously good workmanship, would trade again A+

[Poo]

progress on the zorst.


and





.

[Poo]

[Poo]

pictureless update.
and total pain in the arse.
the turbo is sitting too close to the steering box (we are guessing that the turbo/manifold will hit the steering with the natural movement of the engine). so it looking like the easiest thing to do is to remake the manifold. from scatch. it only needs to move over by 10mm or so. but as far as i can see redoing the manifold is the only option.

to the car will need to get towed to Woolf so they can sort it.

[Poo]

so the turbo placement is still not sorted...... but will be soon I hope.

lame update.

i brought a valve off Trademe.


piston was munted


so new bits from Cameron at Racepro (its going to be plumbed back).


and i sandblasted the crap red paint off. dont know if i want to polish or repaint the body of it.



hopefully the next update will be me saying the manifold is sorted.

[Poo]

not much of an update.
the car is back at Woolf and we are going to send it down to Tim at TTT Auto Engineering to massage the manifold and do the ECU install and a few of the other odd jobs.
looking forward to pushing my car down Dominion Rd to get to TTT, rather than paying for another tow truck.

I got the intake manifold off Sheepers Inc.
it just needed a lug welded to it for the throttle cable. there was a spare lug on the manifold, so that was cut off and welded back on. it even has the right thread for the bolt.

[Poo]

the car has been moved from Woolf, down to TTT Auto Engineering.
we pushed the car down Dominion Road.
Tim at TTT should be working on fixing up the exhaust manifold today.

so from:


to here:



after months of no work on the car, i am hoping that we get this thing fired up soon!

[Poo]

Tim and Dave both working on the car.


the old intake is off and the new multi point is going on as soon as a few clearance issues are sorted.
Battery may end up in the boot.

[Poo]

intake manifold test fitted yesterday. and the thermostat housing is now at the back of the block.
Tim has done a fantastic job of re-routing and welding the water line.
the exhaust manifold has been chopped and re-welded, so there is more clearance by the steering box.

[Poo]

smalll update,

ive got some 'hot bits' at HPC getting a their Xtreme Thermal coating.

and I recieved a package from OS member 'mjrstar' the other day.
woot Evo4 injectors.

[Poo]

got some hot bits back from HPC


fingers crossed the ball starts to roll a bit quicker.

[Poo]

more stuff back from HPC.
the BOV had a bit of wear in the bore, so I got Nicoli at HPC to teflon coat the inside of the valve. he coated the outside of it aswell.


and ive got the guys at TTT to get a intercooler.


the oil cooler will have to be moved. hopefully it doesnt get moved to high as I dont want the oil draining down to the sump when the car is off. and the poor oil pump will have to fill the cooler on start up.

exhaust manifold, turbo, and dump pipe should be going back on today.
Link install later this week....

[Poo]

intercooler mounted and the plumbing started



and turbo mounted and oil and water lines run.

[Poo]

dizzy is now a trigger for the second hand ignitor that I picked up off trademe.
theres a new fuel pump going in. air temp sensor and 4 resistors (for the injectors) are on their way.

hopefully the car gets fired up this weekend

boring pic

[Poo]

FFFFUUUUU

Saturdays work on the car.
the new trigger system didnt work. We couldnt get any reading out of it to the ECU.
So bin that and we are going to use a Link trigger wheel and attach it the the cam pulley.

its getting close.

[Poo]

So the Link trigger wheel has turned up.
it will be mounted to the cam pulley.
the cam pulley obviously needs to come off so the wheel can be doweled to the pulley. so it would be silly not to change the cam belt, balance shaft belt, cam seal, crank seal, tensioners, water pump.
cheers to Phillip Weston Mitsubishi Parts Department for the goods. (should be here this arvo or tomorow morning)



this goes here.
